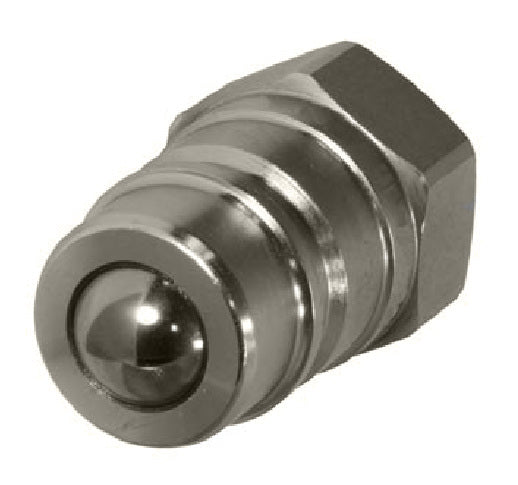

QC-AGBL12-M-08N by Couplamatic | Hydralic Quick Coupler | AGBL Series Coupler | 1/2" Body Size | 1/2-14 NPTF Thread Size | Male

QC-AGBL12-M-08N by Couplamatic | Hydraulic Quick Coupler | AGBL Series | 1/2" Body Size x 1/2-14 NPTF Thread Size Male | Zinc Plating

Save $0.63 Save $0.63
$6.29
$6.29 - $6.29
$6.29
$5.66
$5.66 - $5.66
$5.66

Couplamatic Inc
Hydraulic Quick Couplers - AGBL Series Hydraulic Quick Couplers
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: QC-AGBL12-M-08N Couplamatic
Series: AGBL Series
Shape (Orientation): Straight
Features:
  • AGBL Series Couplers are made to the ISO 5675 Standard (1/2" only).
  • High quality ball style coupler with nitrile seals.
  • Zinc Plating
Temperature:
  • -40°F (-40°C) to 223°F (106°C).
Applications:
  • Industrial
  • Agriculture
  • Mobile
Part Number Body
Size		 Body
Size
(ISO)		 Coupler
Gender		 Thread
Size		 Working
Pressure		 Coupled
Burst		 Female
Burst		 Male
Burst		 "A" Length "B" Length "C" Length
QC-AGBL12-F-08N 1/2" 12 Female 1/2-14 NPT 3987 PSI 18125 PSI 17400 PSI 17400 PSI 3.5" 2.6" -
QC-AGBL12-M-08N 1/2" 12 Male 1/2-14 NPTF 3987 PSI 18125 PSI 17400 PSI 17400 PSI 3.5" - 1.7"
QC-AGBL12-F-08S 1/2" 12 Female 3/4-16 SAE 3987 PSI 18125 PSI 17400 PSI 17400 PSI 3.5" 2.6" -
QC-AGBL12-M-08S 1/2" 12 Male 3/4-16 SAE 3987 PSI 18125 PSI 17400 PSI 17400 PSI 3.5" - 1.7"
