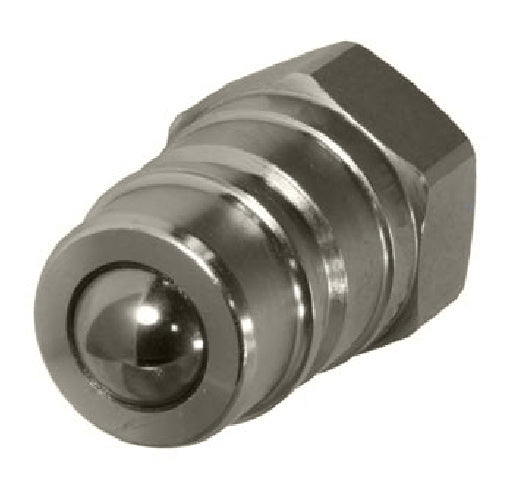

QC-AGBL12-M-08S by Couplamatic | Hydraulic Quick Coupler | AGBL Series | 1/2" Body Size x 3/4-16 Female SAE | Plug | Zinc Plated

QC-AGBL12-M-08S by Couplamatic | Hydraulic Quick Coupler | AGBL Series | 1/2" Body Size x 3/4-16 Female SAE | Plug | Zinc Plated

Save $4.80 Save $4.80
$12.00
$12.00 - $12.00
$12.00
$7.20
$7.20 - $7.20
$7.20

Couplamatic Inc
Hydraulic Quick Couplers - AGBL Series Hydraulic Quick Couplers
Specifications for Variant SKU: QC-AGBL12-M-08S Couplamatic
Series: AGBL Series
Shape (Orientation): Straight
Features:
  • AGBL Series Couplers are made to the ISO 5675 Standard (1/2" only).
  • High quality ball style coupler with nitrile seals.
  • Zinc Plating
Temperature:
  • -40°F (-40°C) to 223°F (106°C).
Applications:
  • Industrial
  • Agriculture
  • Mobile
Part Number Body
Size		 Body
Size
(ISO)		 Coupler
Gender		 Thread
Size		 Working
Pressure		 Coupled
Burst		 Female
Burst		 Male
Burst		 "A" Length "B" Length "C" Length
QC-AGBL12-F-08N 1/2" 12 Female 1/2-14 NPT 3987 PSI 18125 PSI 17400 PSI 17400 PSI 3.5" 2.6" -
QC-AGBL12-M-08N 1/2" 12 Male 1/2-14 NPTF 3987 PSI 18125 PSI 17400 PSI 17400 PSI 3.5" - 1.7"

QC-AGBL12-F-08S 1/2" 12 Female 3/4-16 SAE 3987 PSI 18125 PSI 17400 PSI 17400 PSI 3.5" 2.6" -
QC-AGBL12-M-08S 1/2" 12 Male 3/4-16 SAE 3987 PSI 18125 PSI 17400 PSI 17400 PSI 3.5" - 1.7"

Couplamatic Systems Inc

In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.
