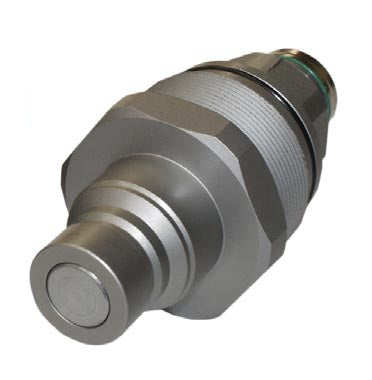

QC-CRTG12-M-M48 by Couplamatic | Hydralic Quick Coupler | CRTG Series Replacement Cartridge Coupler | 1/2" Body Size | 48mm Cartridge Thread | Male

QC-CRTG12-M-M48 by Couplamatic | Hydraulic Quick Coupler | CRTG Series Replacement Cartridge Coupler | 1/2" Body Size | 48mm Cartridge Thread Male | Zinc Nickel Plating

Save $18.10 Save $18.10
$181.04
$181.04 - $181.04
$181.04
$162.94
$162.94 - $162.94
$162.94

Couplamatic Inc
Hydraulic Quick Couplers - CRTG Series Replacement Cartridge Couplers
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: QC-CRTG12-M-M48 Couplamatic
Series: CRTG Series
Shape (Orientation): Straight
Features:
  • The CRTG Series is a replacement flat face cartridge coupler for the 4BD4FH and 4BD4FI blocks.
  • The female coupler has an internal decompression design that allows depressurization when disconnected.
  • The male is designed to connect under pressure.
  • Zinc Nickel Plating
  • Nitrile seals
Temperature:
  • -40°F (-40°C) to 223°F (106°C).
Applications:
  • The cartridges are designed for quick changeovers of attachments on skid steer loaders, backhoes, and other utility vehicles.
Part Number Body
Size		 Body
Size
(ISO)		 Coupler
Gender		 Block
Number		 Cartridge
Thread		 Working
Pressure		 Coupled
Burst		 Female
Burst		 Male
Burst
QC-CRTG12-F-M46 1/2" 12 Female 4BD4FI 46mm 5075 PSI 18125 PSI 18125 PSI 18125 PSI
QC-CRTG12-M-M46 1/2" 12 Male 4BD4FI 46mm 5075 PSI 18125 PSI 18125 PSI 18125 PSI
QC-CRTG12-F-M48 1/2" 12 Female 4BD4FH 48mm 5075 PSI 18125 PSI 18125 PSI 18125 PSI
QC-CRTG12-M-M46 1/2" 12 Male 4BD4FH 48mm 5075 PSI 18125 PSI 18125 PSI 18125 PSI
