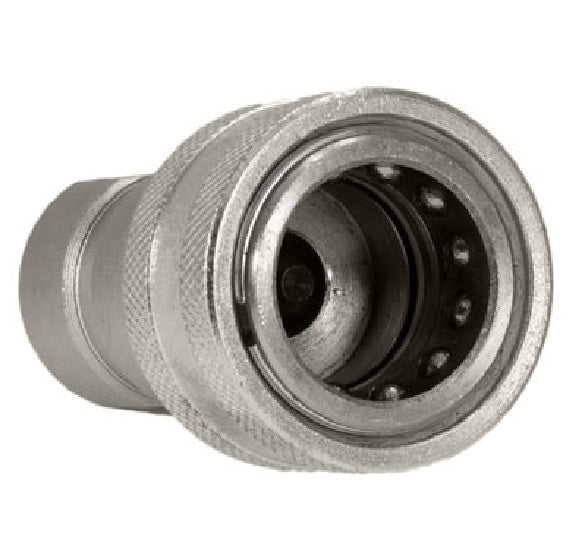

QC-ISOB12-F-08N by Couplamatic | Hydraulic Quick Coupler | ISO B Series | 1/2" Body Size x 1/2-14 Female NPT | Socket | Zinc Plated

Save $2.10

$18.87

$18.87 - $18.87

$18.87

$16.77

$16.77 - $16.77

$16.77

Couplamatic Inc
Hydraulic Quick Couplers - ISO B Series Hydraulic Quick Couplers

Quantity

Specifications for Variant SKU: QC-ISOB12-F-08N Couplamatic
Series:	ISO B Series
Shape (Orientation):	Straight
Ends Configuration:	1/2in Female ISO-B QD Interchange, 1/2in Female NPT

Features:
ISO B Series Couplers are made to the ISO 7241:2014 Series B Standard. Couplers are a high quality product with nitrile seals and balanced spings in the poppets. SSIB ISO B Couplers are made from 316 stainless steel with viton seals. BRIB ISO B Couplers are made from brass with viton seals. Zinc Plating (ISO B)
Temperature:
ISO B Couplers: -40°F (-40°C) to 223°F (106°C). SSIB ISO B Couplers: -4°F (-20°C) to 392°F (200°C). BRIB ISO B Couplers: -4°F (-20°C) to 392°F (200°C).
Applications:
Industrial Agriculture Mobile


Part Number	Body Size	Body Size (ISO)	Coupler Gender	Thread Size	Working Pressure	Coupled Burst	Female Burst	Male Burst	"A" Length	"B" Length	"C" Length
QC-ISOB06-F-04N	1/4"	06	Female	1/4-18 NPT	5800 PSI	25375 PSI	26100 PSI	24650 PSI	2.9"	2.3"	-
QC-ISOB06-M-04N	1/4"	06	Male	1/4-18 NPT	5800 PSI	25375 PSI	26100 PSI	24650 PSI	2.9"	-	1.4"

QC-ISOB10-F-06N	3/8"	10	Female	3/8-18 NPT	5075 PSI	21750 PSI	22475 PSI	21750 PSI	3.2"	2.6"	-
QC-ISOB10-M-06N	3/8"	10	Male	3/8-18 NPT	5075 PSI	21750 PSI	22475 PSI	21750 PSI	3.2"	-	1.6"

QC-ISOB12-F-08N	1/2"	12	Female	1/2-14 NPT	4350 PSI	19140 PSI	20300 PSI	19575 PSI	3.7"	2.9"	-
QC-ISOB12-M-08N	1/2"	12	Male	1/2-14 NPT	4350 PSI	19140 PSI	20300 PSI	19575 PSI	3.7"	-	1.8"

QC-ISOB19-F-12N	3/4"	19	Female	3/4-14 NPT	4350 PSI	17400 PSI	19575 PSI	18850 PSI	4.4"	3.6"	-
QC-ISOB19-M-12N	3/4"	19	Male	3/4-14 NPT	4350 PSI	17400 PSI	19575 PSI	18850 PSI	4.4"	-	2.2"

QC-ISOB25-F-16N	1"	25	Female	1-11-1/2 NPT	4060 PSI	16675 PSI	15950 PSI	15370 PSI	5.0"	4.1"	-
QC-ISOB25-M-16N	1"	25	Male	1-11-1/2 NPT	4060 PSI	16675 PSI	15950 PSI	15370 PSI	5.0"	-	2.5"
Brass ISO B Series Couplers
QC-BRIB06-F-04N	1/4"	06	Female	1/4-18 NPT	3045 PSI	10657 PSI	10657 PSI	9932 PSI	2.9"	2.3"	-
QC-BRIB06-M-04N	1/4"	06	Male	1/4-18 NPT	3045 PSI	10657 PSI	10657 PSI	9932 PSI	2.9"	-	1.4"
Stainless ISO B Series Couplers
QC-SSIB06-F-04N	1/4"	06	Female	1/4-18 NPT	4350 PSI	13050 PSI	13050 PSI	13775 PSI	2.8"	2.2"	-
QC-SSIB06-M-04N	1/4"	06	Male	1/4-18 NPT	4350 PSI	13050 PSI	13050 PSI	13775 PSI	2.8"	-	1.4"

QC-SSIB10-F-06N	3/8"	10	Female	3/8-18 NPT	3625 PSI	10875 PSI	10875 PSI	12325 PSI	3.1"	2.5"	-
QC-SSIB10-M-06N	3/8"	10	Male	3/8-18 NPT	3625 PSI	10875 PSI	10875 PSI	12325 PSI	3.1"	-	1.5"

QC-SSIB12-F-08N	1/2"	12	Female	1/2-14 NPT	3625 PSI	10875 PSI	10875 PSI	11600 PSI	3.6"	2.9"	-
QC-SSIB12-M-08N	1/2"	12	Male	1/2-14 NPT	3625 PSI	10875 PSI	10875 PSI	11600 PSI	3.6"	-	1.8"

Couplamatic Systems Inc

In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.
