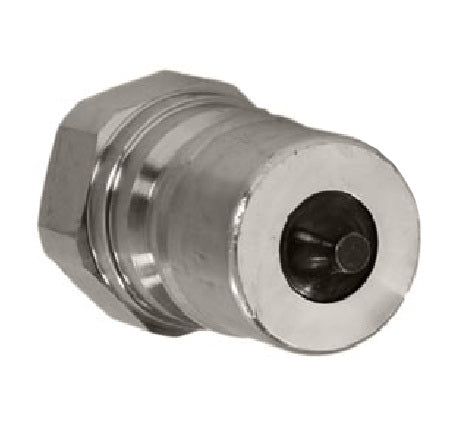

QC-ISOB25-M-16N by Couplamatic | Hydraulic Quick Coupler | ISO B Series | 1" Body Size x 1-11-1/2 Female NPT | Plug | Zinc Plated

Save $2.23

$20.04

$20.04 - $20.04

$20.04

$17.81

$17.81 - $17.81

$17.81

Couplamatic Inc
Hydraulic Quick Couplers - ISO B Series Hydraulic Quick Couplers

Quantity

Specifications for Variant SKU: QC-ISOB25-M-16N Couplamatic
Series:	ISO B Series
Shape (Orientation):	Straight
Ends Configuration:	1in Female ISO-B QD Interchange, 1in Male NPT

Features:
ISO B Series Couplers are made to the ISO 7241:2014 Series B Standard. Couplers are a high quality product with nitrile seals and balanced spings in the poppets. SSIB ISO B Couplers are made from 316 stainless steel with viton seals. BRIB ISO B Couplers are made from brass with viton seals. Zinc Plating (ISO B)
Temperature:
ISO B Couplers: -40°F (-40°C) to 223°F (106°C). SSIB ISO B Couplers: -4°F (-20°C) to 392°F (200°C). BRIB ISO B Couplers: -4°F (-20°C) to 392°F (200°C).
Applications:
Industrial Agriculture Mobile


Part Number	Body Size	Body Size (ISO)	Coupler Gender	Thread Size	Working Pressure	Coupled Burst	Female Burst	Male Burst	"A" Length	"B" Length	"C" Length
QC-ISOB06-F-04N	1/4"	06	Female	1/4-18 NPT	5800 PSI	25375 PSI	26100 PSI	24650 PSI	2.9"	2.3"	-
QC-ISOB06-M-04N	1/4"	06	Male	1/4-18 NPT	5800 PSI	25375 PSI	26100 PSI	24650 PSI	2.9"	-	1.4"

QC-ISOB10-F-06N	3/8"	10	Female	3/8-18 NPT	5075 PSI	21750 PSI	22475 PSI	21750 PSI	3.2"	2.6"	-
QC-ISOB10-M-06N	3/8"	10	Male	3/8-18 NPT	5075 PSI	21750 PSI	22475 PSI	21750 PSI	3.2"	-	1.6"

QC-ISOB12-F-08N	1/2"	12	Female	1/2-14 NPT	4350 PSI	19140 PSI	20300 PSI	19575 PSI	3.7"	2.9"	-
QC-ISOB12-M-08N	1/2"	12	Male	1/2-14 NPT	4350 PSI	19140 PSI	20300 PSI	19575 PSI	3.7"	-	1.8"

QC-ISOB19-F-12N	3/4"	19	Female	3/4-14 NPT	4350 PSI	17400 PSI	19575 PSI	18850 PSI	4.4"	3.6"	-
QC-ISOB19-M-12N	3/4"	19	Male	3/4-14 NPT	4350 PSI	17400 PSI	19575 PSI	18850 PSI	4.4"	-	2.2"

QC-ISOB25-F-16N	1"	25	Female	1-11-1/2 NPT	4060 PSI	16675 PSI	15950 PSI	15370 PSI	5.0"	4.1"	-
QC-ISOB25-M-16N	1"	25	Male	1-11-1/2 NPT	4060 PSI	16675 PSI	15950 PSI	15370 PSI	5.0"	-	2.5"
Brass ISO B Series Couplers
QC-BRIB06-F-04N	1/4"	06	Female	1/4-18 NPT	3045 PSI	10657 PSI	10657 PSI	9932 PSI	2.9"	2.3"	-
QC-BRIB06-M-04N	1/4"	06	Male	1/4-18 NPT	3045 PSI	10657 PSI	10657 PSI	9932 PSI	2.9"	-	1.4"
Stainless ISO B Series Couplers
QC-SSIB06-F-04N	1/4"	06	Female	1/4-18 NPT	4350 PSI	13050 PSI	13050 PSI	13775 PSI	2.8"	2.2"	-
QC-SSIB06-M-04N	1/4"	06	Male	1/4-18 NPT	4350 PSI	13050 PSI	13050 PSI	13775 PSI	2.8"	-	1.4"

QC-SSIB10-F-06N	3/8"	10	Female	3/8-18 NPT	3625 PSI	10875 PSI	10875 PSI	12325 PSI	3.1"	2.5"	-
QC-SSIB10-M-06N	3/8"	10	Male	3/8-18 NPT	3625 PSI	10875 PSI	10875 PSI	12325 PSI	3.1"	-	1.5"

QC-SSIB12-F-08N	1/2"	12	Female	1/2-14 NPT	3625 PSI	10875 PSI	10875 PSI	11600 PSI	3.6"	2.9"	-
QC-SSIB12-M-08N	1/2"	12	Male	1/2-14 NPT	3625 PSI	10875 PSI	10875 PSI	11600 PSI	3.6"	-	1.8"
