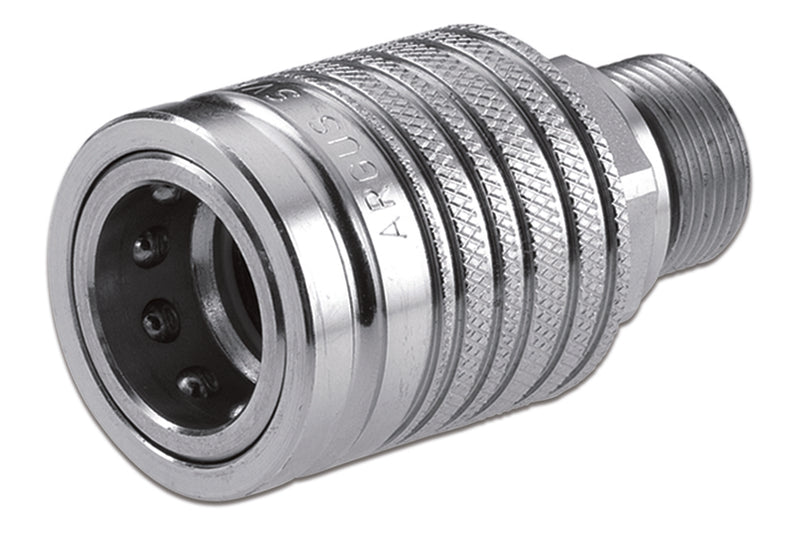

QCF-0808-FNPR ARGUS by Kuriyama | Hydraulic Quick Disconnect Coupling | QO-ISO-A | Poppet Standard ISO 7241 A Push Pull | -08 ISO 7241 A x -08 Female NPTF | Socket | Galvanized Steel

QCF-0808-FNPR ARGUS by Kuriyama | Hydraulic Quick Disconnect Coupling | QO-ISO-A | Poppet Standard ISO 7241 A Push Pull | -08 ISO 7241 A x -08 Female NPTF | Socket | Galvanized Steel

Save $7.10 Save $7.10
$24.85
$24.85 - $24.85
$24.85
$17.75
$17.75 - $17.75
$17.75

Kuriyama of America Inc.
ARGUS | Hydraulic Quick Disconnect Socket | Poppet Standard ISO 7241 A Push Pull | Female NPTF

ARGUS QC-ISO-A quick release couplings are used for quick coupling and uncoupling of loaded lines.

Suitable for liquid lines with mineral oil-based hydraulic fluids to DIN 51524 T1+T2.
Specifications for Variant SKU: QCF-0808-FNPR Kuriyama
Brand: ARGUS
Series: QO-ISO-A
Shape (Orientation): Straight
Ends Configuration: 1/2in Female ISO-A QD Interchange, 1/2in Female NPTF
Material(s): Galvanized Steel
Seal Material(s): HNBR
Applicable Specs & Approvals: ISO 7241 A
Features:
  • ARGUS QC-ISO-A quick release couplings are used for quick coupling and uncoupling of loaded lines.
  • During the coupling action in zero or low-pressure ranges, valves that release or block the flow are automatically activated.
  • The QC-ISO-A quick release coupling, formed by the coupling plug and the coupling socket, is coupled by pushing on a sleeve. This guarantees a flush connection between the two coupling halves.
  • The sleeve is designed so that it has only to be moved in the relevant direction for disconnecting or connecting of coupling halves.
  • QC-ISO-A quick release couplings can be used as pull-off couplings by panel mounting the sleeve bush.
Construction:
  • Galvanized steel with hardened parts subject to wear.
  • HNBR O-rings.
  • Galvanized steel threaded adapters for various connection types.
  • Thermoplastic dust cap and dust plug.
  • ARGUS couplings feature a chrome-III zinc plating with a long lasting resistance to oxidation (TOP COAT, patented).
Application:
  • Suitable for liquid lines with mineral oil-based hydraulic fluids to DIN 51524 T1+T2.
Specifications:
  • ISO 7241 A
  • SAE J 1036
Temperature range:
  • -22°F (-30°C) to +257°F (+125°C)
QO-ISO-A | Poppet Standard ISO 7241 A Push Pull | Rated Pressure Chart
Dash Size ID Size Working Pressure PSI Burst Pressure PSI
-04 1/4" 5800 PSI 23200 PSI
-06 3/8" 5800 PSI 23200 PSI
-08 1/2" 3625 PSI 14500 PSI
-12 3/4" 3625 PSI 14500 PSI
-16 1" 3625 PSI 14500 PSI
Socket | QO-ISO-A | Poppet Standard ISO 7241 A Push Pull
Part
Number		 Coupling
Type		 ID
Size		 Threads D1 CH L1 L
Dash Size mm in mm mm mm mm
QCF-0404-FNPR Socket/Female 04 6.0mm 1/4" 1/4-18 Female NPTF 25.0mm 19.0mm 46.5mm 64.10mm
QCF-0606-FNPR Socket/Female 06 10.0mm 3/8" 3/8-18 Female NPTF 32.0mm 22.0mm 55.5mm 75.20mm
QCF-0808-FNPR Socket/Female 08 13.0mm 1/2" 1/2-14 Female NPTF 38.0mm 27.0mm 63.5mm 86.70mm
QCF-1212-FNPR Socket/Female 12 19.0mm 3/4" 3/4-14 Female NPTF 45.0mm 35.0mm 80.0mm 105.90mm
QCF-1616-FNPR Socket/Female 16 25.0mm 1" 1-11-1/2 Female NPTF 52.0mm 40.0mm 94.5mm 121.40mm
