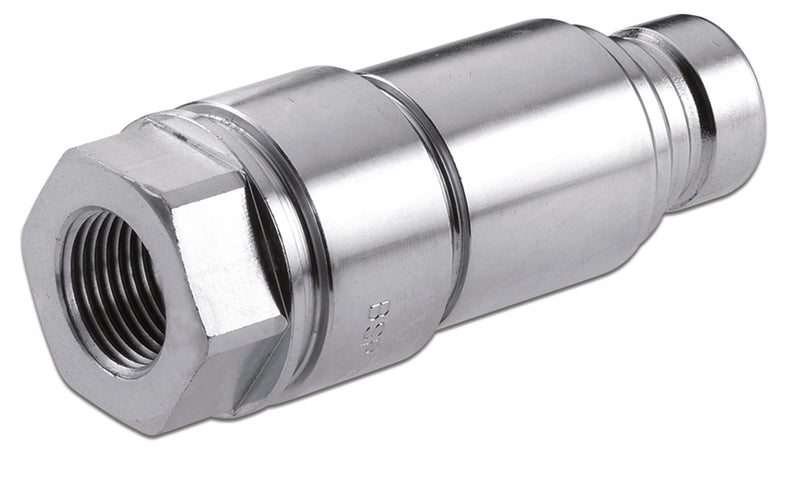

QGM-0808-FNPR ARGUS by Kuriyama | Hydraulic Quick Disconnect Coupling | QG Series | Flat Face Connect Under Pressure Standard ISO 16028 | -08 ISO 16028 x -08 Female NPTF | Plug | Galvanized Steel

Save $27.46

$96.12

$96.12 - $96.12

$96.12

$68.66

$68.66 - $68.66

$68.66

Kuriyama of America Inc.
ARGUS | Hydraulic Quick Disconnect Plug | QG Series | Flat Face Connect Under Pressure Standard ISO 16028 | Female NPTF

ARGUS QG flat face quick release couplings are used for quick coupling and uncoupling of hydraulic lines.

Suitable for liquid lines with mineral oil-based hydraulic fluids to DIN 51524 T1+T2.

Specifications for Variant SKU: QGM-0808-FNPR Kuriyama
Brand:	ARGUS
Series:	QG Series
Shape (Orientation):	Straight
Material(s):	Galvanized Steel
Seal Material(s):	HNBR
Applicable Specs & Approvals:	ISO 16028, ANSI B1-20.3

Features:	ARGUS QG flat face quick release couplings are used for quick coupling and uncoupling of hydraulic lines. During the coupling action in zero or low-pressure ranges, valves that release or block the flow are automatically activated. The QG flat face quick release coupling, formed by a coupling plug and a coupling socket, is coupled by pushing on a sleeve. This guarantees a flush connection between the two coupling halves. The sleeve is designed to be moved in the relevant direction for disconnecting or connecting the coupling halves.
Construction:	Galvanized steel with hardened parts subject to wear. HNBR seals. Backup rings PTFE. Thermoplastic dust cap and dust plug. ARGUS couplings feature a chrome-III zinc plating with a long lasting resistance to oxidation (TOP COAT, patented).
Application:	Suitable for liquid lines with mineral oil-based hydraulic fluids to DIN 51524 T1+T2.
Specifications:	ISO 16028 NPTF connection according to ANSI B1-20.3
Temperature range:	-22°F (-30°C) to +257°F (+125°C)

QG Series \| Flat Face Connect Under Pressure Standard ISO 16028 \| Rated Pressure Chart
Dash Size	ID Size	Working Pressure PSI	Burst Pressure PSI
All Sizes	All Sizes	5075 PSI	20300 PSI

Plug \| QG Series \| Flat Face Connect Under Pressure Standard ISO 16028

Part Number	Coupling Type	ID Size			Threads	D1	CH	L1	L	Dust Cap
Part Number	Coupling Type	Dash Size	mm	in	Threads	mm	mm	mm	mm
QGM-0606-FNPR	Plug/Male	06	10.0mm	3/8"	3/8-18 Female NPTF	19.7mm	27.0mm	82.5mm	134.00mm	QFC-06
QGM-0808-FNPR	Plug/Male	08	13.0mm	1/2"	1/2-14 Female NPTF	24.6mm	32.0mm	94.5mm	152.00mm	QFC-08
QGM-1212-FNPR	Plug/Male	12	19.0mm	3/4"	3/4-14 Female NPTF	29.9mm	42.0mm	118.5mm	189.50mm	QFC-12
