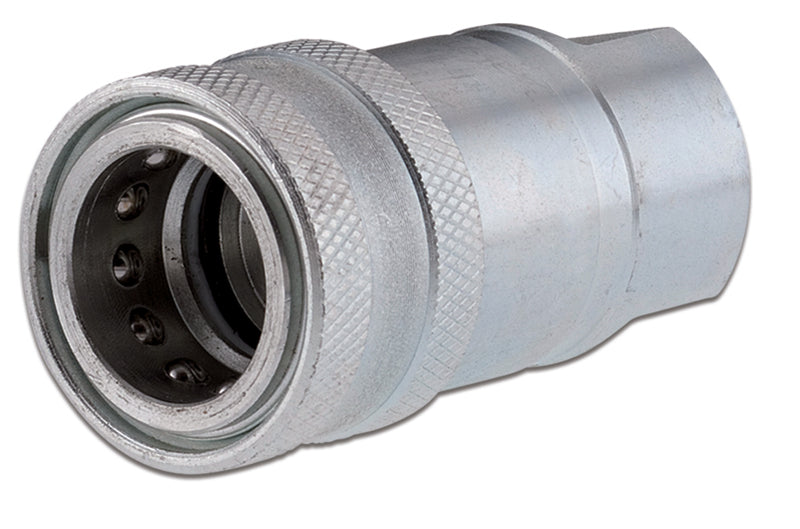

QTF-1212-FNPR ARGUS by Kuriyama | Hydraulic Quick Disconnect Coupling | QT Series | Ball Industry Standard ISO 5675 | -12 ISO 5675 x -12 Female NPTF | Socket | Galvanized Steel

QTF-1212-FNPR ARGUS by Kuriyama | Hydraulic Quick Disconnect Coupling | QT Series | Ball Industry Standard ISO 5675 | -12 ISO 5675 x -12 Female NPTF | Socket | Galvanized Steel

Save $13.97 Save $13.97
$48.89
$48.89 - $48.89
$48.89
$34.92
$34.92 - $34.92
$34.92

Kuriyama of America Inc.
ARGUS | Hydraulic Quick Disconnect Socket | QT Series | Ball Industry Standard ISO 5675 | Female NPTF

ARGUS Agricultural/Normal quick release couplings with ball valve are used for quick coupling and uncoupling of hydraulic lines.

Suitable for liquid lines with mineral oil-based hydraulic fluids to DIN 51524 T1+T2.
Specifications for Variant SKU: QTF-1212-FNPR Kuriyama
Brand: ARGUS
Series: QT Series
Shape (Orientation): Straight
Material(s): Galvanized Steel
Seal Material(s): Buna-N/Nitrile Rubber
Applicable Specs & Approvals: ISO 5675
Features:
  • ARGUS Agricultural/Normal quick release couplings with ball valve are used for quick coupling and uncoupling of hydraulic lines.
  • During the coupling action in zero or lowpressure ranges, valves that release or block the flow are automatically activated.
  • The QT quick release coupling, formed by the coupling plug and the coupling socket, is connected by pushing on a sleeve.
Construction:
  • Galvanized steel with hardened parts subject to wear.
  • NBR O-rings.
  • Thermoplastic dust cap and dust plug.
  • ARGUS couplings feature a chrome-III zinc plating with a long lasting resistance to oxidation (TOP COAT, patented).
Application:
  • Suitable for liquid lines with mineral oil-based hydraulic fluids to din 51524 T1+T2.
Specifications:
  • ISO 5675
Temperature range:
  • -4°F (-20°C) to +212°F (+100°C)
QT Series | Ball Industry Standard ISO 5675 | Rated Pressure Chart
Dash Size ID Size Working Pressure PSI Burst Pressure PSI
-04 1/4" 5075 PSI 20300 PSI
-06 3/8" 3915 PSI 15660 PSI
-08 1/2" 3915 PSI 15660 PSI
-12 3/4" 2900 PSI 11600 PSI
-16 1" 2900 PSI 11600 PSI
Socket | QT Series | Ball Industry Standard ISO 5675
Part
Number		 Coupling
Type		 ID
Size		 Threads D1 CH L1 L Dust Plug
Dash Size mm in mm mm mm mm
QTF-0404-FNPR Socket/Female 04 6.0mm 1/4" 1/4-18 Female NPTF 27.6mm 19.0mm 53.5mm 72.00mm QTP-04
QTF-0606-FNPR Socket/Female 06 10.0mm 3/8" 3/8-18 Female NPTF 34.0mm 24.0mm 63.0mm 83.00mm QTP-06
QTF-0808-FNPR Socket/Female 08 13.0mm 1/2" 1/2-14 Female NPTF 38.5mm 27.0mm 66.0mm 88.20mm -
QTF-1212-FNPR Socket/Female 12 19.0mm 3/4" 3/4-14 Female NPTF 48.2mm 34.0mm 82.5mm 108.00mm QTP-12
QTF-1616-FNPR Socket/Female 16 25.0mm 1" 1-11-1/2 Female NPTF 56.5mm 41.0mm 96.5mm 127.00mm QTP-16
Plug | QT Series | Ball Industry Standard ISO 5675
Part
Number		 Coupling
Type		 ID
Size		 Threads D1 CH L1 L Dust Cap
Dash Size mm in mm mm mm mm
QTM-0404-FNPR Plug/Male 04 6.0mm 1/4" 1/4-18 Female NPTF 14.1mm 19.0mm 36.0mm 72.00mm QTC-04
QTM-0606-FNPR Plug/Male 06 10.0mm 3/8" 3/8-18 Female NPTF 18.9mm 24.0mm 40.0mm 83.00mm QTC-06
QTM-0808-FNPR Plug/Male 08 13.0mm 1/2" 1/2-14 Female NPTF 20.5mm 27.0mm 44.0mm 88.20mm -
QTM-1212-FNPR Plug/Male 12 19.0mm 3/4" 3/4-14 Female NPTF 27.9mm 34.0mm 49.0mm 108.00mm QTC-12
QTM-1616-FNPR Plug/Male 16 25.0mm 1" 1-11-1/2 Female NPTF 31.3mm 41.0mm 64.0mm 127.00mm QTC-16
