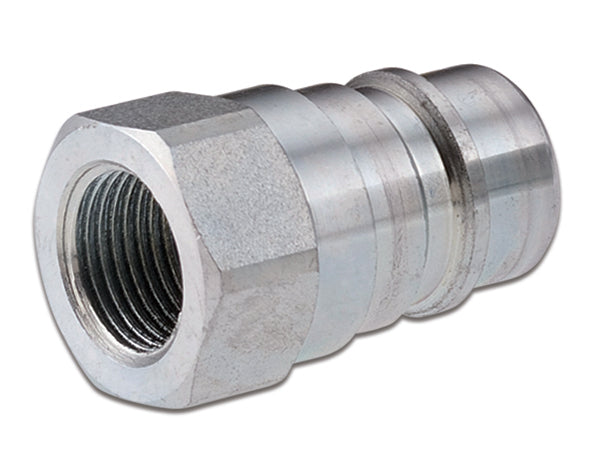

QTM-0606-FNPR ARGUS by Kuriyama | Hydraulic Quick Disconnect Coupling | QT Series | Ball Industry Standard ISO 5675 | -06 ISO 5675 x -06 Female NPTF | Plug | Galvanized Steel

Save $2.71

$9.48

$9.48 - $9.48

$9.48

$6.77

$6.77 - $6.77

$6.77

Kuriyama of America Inc.
ARGUS | Hydraulic Quick Disconnect Plug | QT Series | Ball Industry Standard ISO 5675 | Female NPTF

ARGUS Agricultural/Normal quick release couplings with ball valve are used for quick coupling and uncoupling of hydraulic lines.

Suitable for liquid lines with mineral oil-based hydraulic fluids to DIN 51524 T1+T2.

Specifications for Variant SKU: QTM-0606-FNPR Kuriyama
Brand:	ARGUS
Series:	QT Series
Shape (Orientation):	Straight
Material(s):	Galvanized Steel
Applicable Specs & Approvals:	ISO 5675

Features:	ARGUS Agricultural/Normal quick release couplings with ball valve are used for quick coupling and uncoupling of hydraulic lines. During the coupling action in zero or lowpressure ranges, valves that release or block the flow are automatically activated. The QT quick release coupling, formed by the coupling plug and the coupling socket, is connected by pushing on a sleeve.
Construction:	Galvanized steel with hardened parts subject to wear. NBR O-rings. Thermoplastic dust cap and dust plug. ARGUS couplings feature a chrome-III zinc plating with a long lasting resistance to oxidation (TOP COAT, patented).
Application:	Suitable for liquid lines with mineral oil-based hydraulic fluids to din 51524 T1+T2.
Specifications:	ISO 5675
Temperature range:	-4°F (-20°C) to +212°F (+100°C)

QT Series \| Ball Industry Standard ISO 5675 \| Rated Pressure Chart
Dash Size	ID Size	Working Pressure PSI	Burst Pressure PSI
-04	1/4"	5075 PSI	20300 PSI
-06	3/8"	3915 PSI	15660 PSI
-08	1/2"	3915 PSI	15660 PSI
-12	3/4"	2900 PSI	11600 PSI
-16	1"	2900 PSI	11600 PSI

Plug \| QT Series \| Ball Industry Standard ISO 5675

Part Number	Coupling Type	ID Size			Threads	D1	CH	L1	L	Dust Cap
Part Number	Coupling Type	Dash Size	mm	in	Threads	mm	mm	mm	mm	Dust Cap
QTM-0404-FNPR	Plug/Male	04	6.0mm	1/4"	1/4-18 Female NPTF	14.1mm	19.0mm	36.0mm	72.00mm	QTC-04
QTM-0606-FNPR	Plug/Male	06	10.0mm	3/8"	3/8-18 Female NPTF	18.9mm	24.0mm	40.0mm	83.00mm	QTC-06
QTM-0808-FNPR	Plug/Male	08	13.0mm	1/2"	1/2-14 Female NPTF	20.5mm	27.0mm	44.0mm	88.20mm	-
QTM-1212-FNPR	Plug/Male	12	19.0mm	3/4"	3/4-14 Female NPTF	27.9mm	34.0mm	49.0mm	108.00mm	QTC-12
QTM-1616-FNPR	Plug/Male	16	25.0mm	1"	1-11-1/2 Female NPTF	31.3mm	41.0mm	64.0mm	127.00mm	QTC-16

Socket \| QT Series \| Ball Industry Standard ISO 5675

Part Number	Coupling Type	ID Size			Threads	D1	CH	L1	L	Dust Plug
Part Number	Coupling Type	Dash Size	mm	in	Threads	mm	mm	mm	mm	Dust Plug
QTF-0404-FNPR	Socket/Female	04	6.0mm	1/4"	1/4-18 Female NPTF	27.6mm	19.0mm	53.5mm	72.00mm	QTP-04
QTF-0606-FNPR	Socket/Female	06	10.0mm	3/8"	3/8-18 Female NPTF	34.0mm	24.0mm	63.0mm	83.00mm	QTP-06
QTF-0808-FNPR	Socket/Female	08	13.0mm	1/2"	1/2-14 Female NPTF	38.5mm	27.0mm	66.0mm	88.20mm	-
QTF-1212-FNPR	Socket/Female	12	19.0mm	3/4"	3/4-14 Female NPTF	48.2mm	34.0mm	82.5mm	108.00mm	QTP-12
QTF-1616-FNPR	Socket/Female	16	25.0mm	1"	1-11-1/2 Female NPTF	56.5mm	41.0mm	96.5mm	127.00mm	QTP-16
