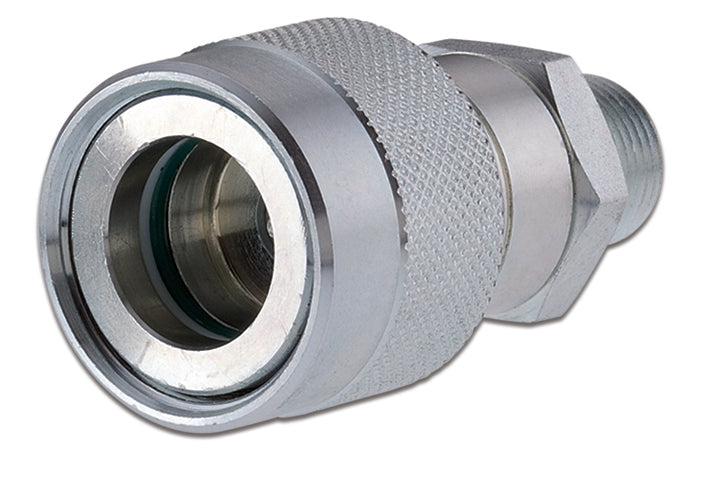

QXF-0404-MNPT ARGUS by Kuriyama | Hydraulic Quick Disconnect Coupling | QX Series | Screw Coupling Poppet | -04 ISO 14540 x -04 Male NPTF | Socket | Galvanized Steel

Save $9.10

$31.86

$31.86 - $31.86

$31.86

$22.76

$22.76 - $22.76

$22.76

Kuriyama of America Inc.
ARGUS | Hydraulic Quick Disconnect Socket | QX Series | Screw Coupling Poppet ISO 14540

ARGUS QX high pressure couplings can be used for connecting and disconnecting hydraulic lines.

Suitable for liquid lines with mineral oil-based hydraulic fluids to DIN 51524 T1+T2.

Specifications for Variant SKU: QXF-0404-MNPT Kuriyama
Brand:	ARGUS
Series:	QG Series
Shape (Orientation):	Straight
Seal Material(s):	HNBR
Applicable Specs & Approvals:	ISO 14540, ANSI B1-20.3

Features:	Typically employed in power tools. ARGUS QX high pressure couplings can be used for connecting and disconnecting hydraulic lines. Their robust construction and tested components make them ideally suited for high and intermittent pressure loads. During the coupling action, valves that release and/or block the flow are automatically activated. The QX quick release coupling, formed by coupling plug and coupling socket, is coupled by a screwing action with the hand nut of the plug component.
Construction:	Galvanized steel. HNBR o-rings. Thermoplastic dust cap and dust plug. ARGUS couplings feature a chrome-III zinc plating with a long lasting resistance to oxidation (TOP COAT, patented).
Application:	Suitable for liquid lines with mineral oil-based hydraulic fluids to DIN 51524 T1+T2.
Specifications:	ISO 14540 NPTF connection according to ANSI B1-20.3.
Temperature range:	-22°F (-30°C) to +257°F (+125°C)

QX Series \| Screw Coupling Poppet ISO 14540 \| Rated Pressure Chart
Dash Size	ID Size	Working Pressure PSI	Burst Pressure PSI
All Sizes	All Sizes	10150 PSI	40600 PSI

Socket \| QX Series \| Screw Coupling Poppet ISO 14540

Part Number	Coupling Type	ID Size			Threads	D1	CH	L1	L	Dust Plug
Part Number	Coupling Type	Dash Size	mm	in	Threads	mm	mm	mm	mm	Dust Plug
QXF-0404-MNPT	Socket/Female	04	6.0mm	1/4"	1/4-18 Male NPTF	28.5mm	22.0mm	59.6mm	74.00mm	QXP-04
QXF-0606-MNPT	Socket/Female	06	10.0mm	3/8"	3/8-18 Male NPTF	35.0mm	25.0mm	72.5mm	83.00mm	QXP-06

Plug \| QX Series \| Screw Coupling Poppet ISO 14540

Part Number	Coupling Type	ID Size			Threads	D1	CH	L1	L	Dust Cap
Part Number	Coupling Type	Dash Size	mm	in	Threads	mm	mm	mm	mm	Dust Cap
QXM-0404-FNPR	Plug/Male	04	6.0mm	1/4"	1/4-18 Female NPTF	15.8mm	19.0mm	32.5mm	74.00mm	QXC-04
QXM-0606-FNPR	Plug/Male	06	10.0mm	3/8"	3/8-18 Female NPTF	19.0mm	32.0mm	35.0mm	83.00mm	QXC-06
