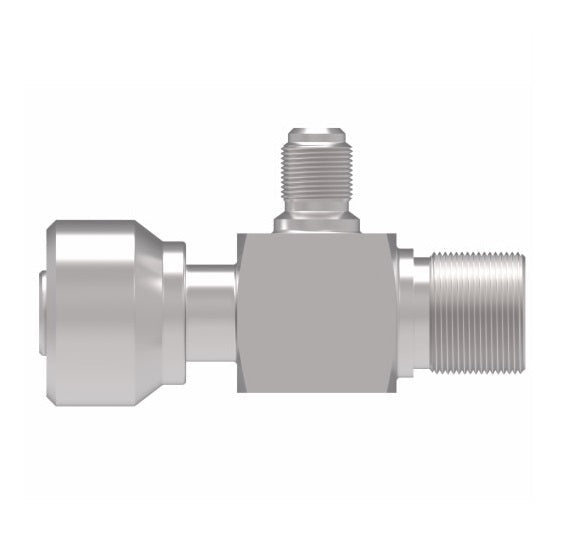

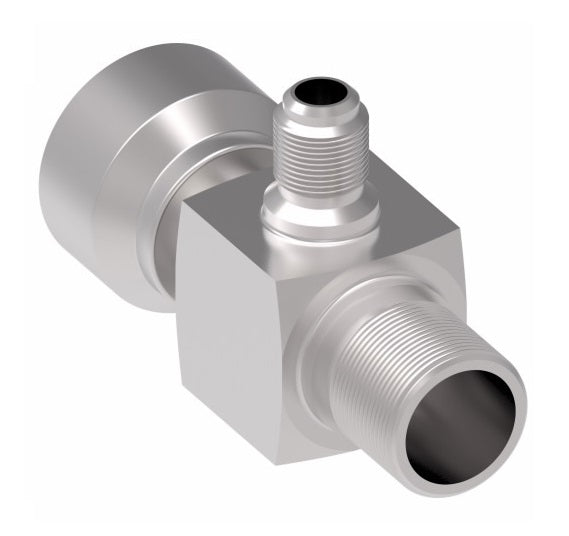

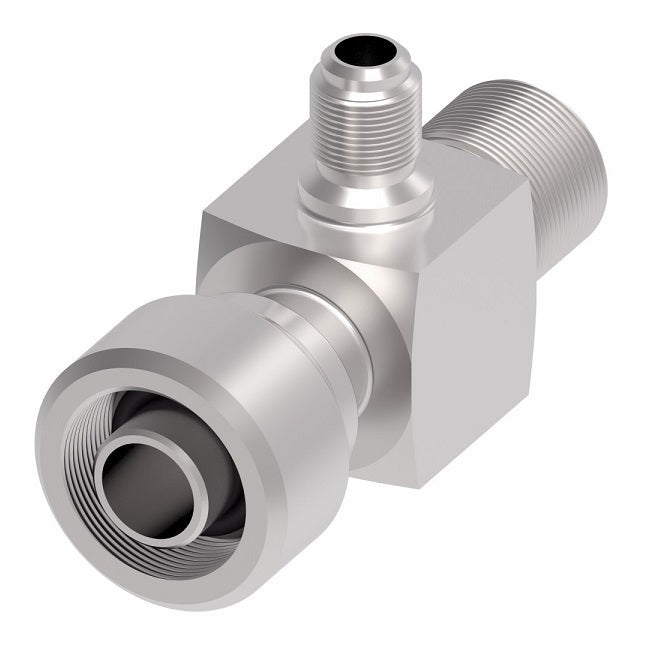

R12-Z56 Weatherhead by Danfoss | 757 'E' Series | Bumped Tube O-Ring Service Port Adapter with R12 High Service Port | 3/8" Tube Size | Steel

R12-Z56 Weatherhead by Danfoss | 757 'E' Series | Bumped Tube O-Ring Service Port Adapter with R12 High Service Port | 3/8" Tube Size | Steel

Name: R12-Z56 Weatherhead by Danfoss | 757 'E' Series | Bumped Tube O-Ring Service Port Adapter with R12 High Service Port | 3/8" Tube Size | Steel
Brand: Danfoss/Eaton
SKU: R12-Z56 Danfoss
Price: 51.02 USD
Availability: InStock

$51.02 - $51.02

$51.02

$51.02 - $51.02

$51.02

Weatherhead by Danfoss
Coll-O-Crimp 757 'E' Series Adapter - Bumped Tube O-Ring Service Port Adapter with R12 Service Port

Specifications for Variant SKU: R12-Z56 Danfoss
Brand:	Weatherhead
Series:	757 'E' Series
Shape (Orientation):	Straight
Material(s):	Steel
Compatible with the following Series:	H757 Series

Service Port Adapter

Weatherhead® by Danfoss 757 E Series Bumped Tube O-Ring Service Port Adapter

A bumped-tube O-ring service port adapter for R134a and R12 air conditioning systems, built for heavy-duty truck, industrial, and automotive use.

✓

R134a & R12

Compatible with both refrigerant systems

⚙

Carbon Steel

Zinc plated, clear trivalent chromate

★

Heavy-Duty

Truck, industrial & automotive

◎

Fits H757 Hose

Bumped tube O-ring design

1

What is this product used for?

R134a and R12 applications
Heavy-duty truck
Industrial
Automotive

2

What are the key specifications?

Material

Carbon steel

Plating

Zinc; clear trivalent chromate

Pressure

Determined by hose burst pressure

Compatible Hose

H757

Refrigerants

R134a and R12

3

Which options are available?

Steel Part Number	Tube Size	Thread Size G	Port	Length A	Across Flats	Hex F	Service Port Thread
R12-Z56	3/8"	5/8-18	High Service Port	2.02"	5/8"	3/4"	3/8-24
R12-Z60	5/8"	7/8-14	Low Service Port	2.63"	7/8"	1-1/16"	3/8-24

i

Pressure rating is determined by the burst pressure of the mating hose. Consult manufacturer documentation for complete specifications.

Note: Drawings may differ from actual parts.
