R12-Z60 Weatherhead by Danfoss | 757 'E' Series | Bumped Tube O-Ring Service Port Adapter with R12 Low Service Port | 5/8" Tube Size | Steel
R12-Z60 Weatherhead by Danfoss | 757 'E' Series | Bumped Tube O-Ring Service Port Adapter with R12 Low Service Port | 5/8" Tube Size | Steel
R12-Z60 Weatherhead by Danfoss | 757 'E' Series | Bumped Tube O-Ring Service Port Adapter with R12 Low Service Port | 5/8" Tube Size | Steel
R12-Z60 Weatherhead by Danfoss | 757 'E' Series | Bumped Tube O-Ring Service Port Adapter with R12 Low Service Port | 5/8" Tube Size | Steel

R12-Z60 Weatherhead by Danfoss | 757 'E' Series | Bumped Tube O-Ring Service Port Adapter with R12 Low Service Port | 5/8" Tube Size | Steel

$31.76 - $31.76
$31.76
$31.76 - $31.76
$31.76

Weatherhead by Danfoss
Coll-O-Crimp 757 'E' Series Adapter - Bumped Tube O-Ring Service Port Adapter with R12 Service Port
Specifications for Variant SKU: R12-Z60 Danfoss
Brand: Weatherhead
Series: 757 'E' Series
Shape (Orientation): Straight
Material(s): Steel
Compatible with the following Series: H757 Series
Service Port Adapter

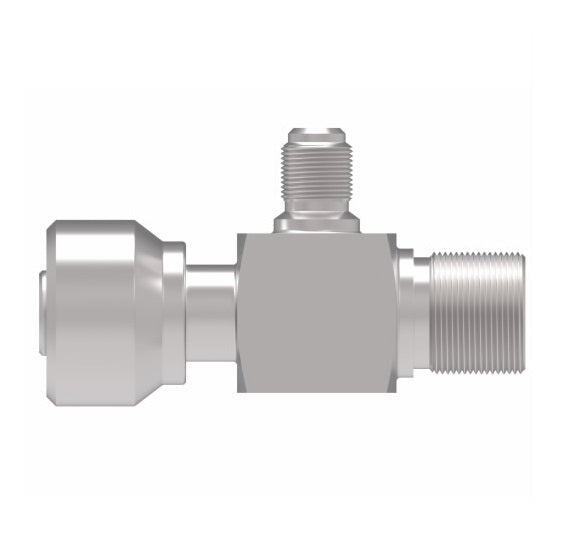

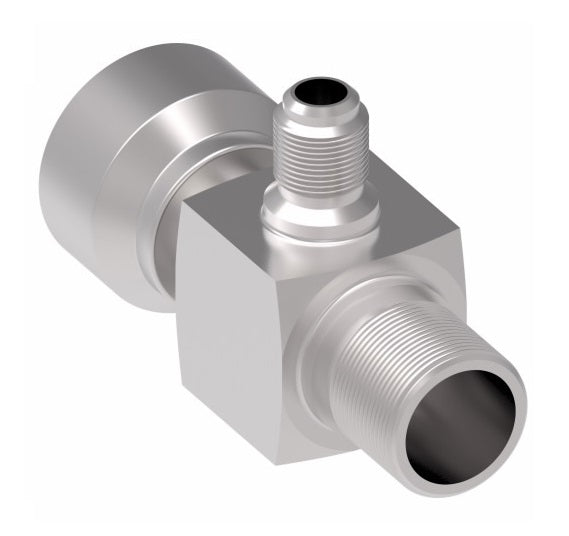

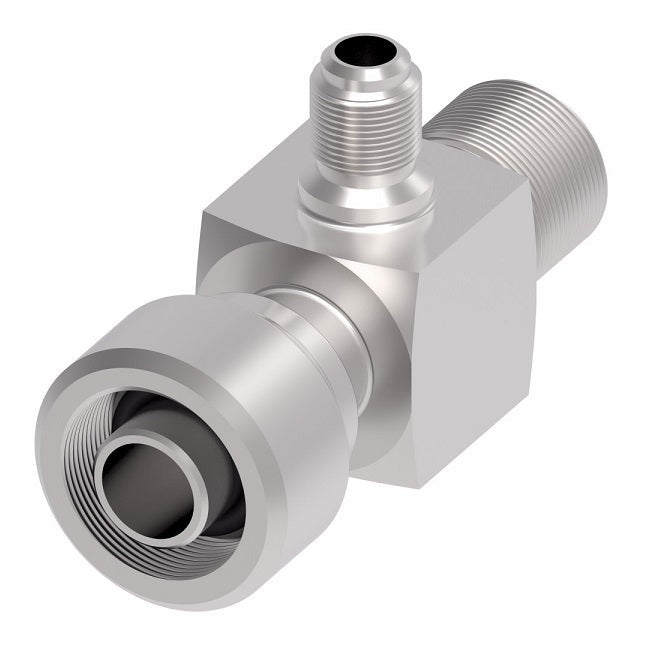

Weatherhead® by Danfoss 757 E Series Bumped Tube O-Ring Service Port Adapter

A bumped-tube O-ring service port adapter for R134a and R12 air conditioning systems, built for heavy-duty truck, industrial, and automotive use.

Weatherhead by Danfoss 757 E Series bumped tube O-ring service port adapter
✓

R134a & R12

Compatible with both refrigerant systems

⚙

Carbon Steel

Zinc plated, clear trivalent chromate

★

Heavy-Duty

Truck, industrial & automotive

◎

Fits H757 Hose

Bumped tube O-ring design

1

What is this product used for?
  • R134a and R12 applications
  • Heavy-duty truck
  • Industrial
  • Automotive
2

What are the key specifications?
Material

Carbon steel

Plating

Zinc; clear trivalent chromate

Pressure

Determined by hose burst pressure

Compatible Hose

H757

Refrigerants

R134a and R12

3

Which options are available?
Steel
Part Number		 Tube Size Thread Size
G		 Port Length
A		 Across Flats Hex
F		 Service Port Thread
R12-Z56 3/8" 5/8-18 High Service Port 2.02" 5/8" 3/4" 3/8-24
R12-Z60 5/8" 7/8-14 Low Service Port 2.63" 7/8" 1-1/16" 3/8-24
i
Pressure rating is determined by the burst pressure of the mating hose. Consult manufacturer documentation for complete specifications.
Note: Drawings may differ from actual parts.
