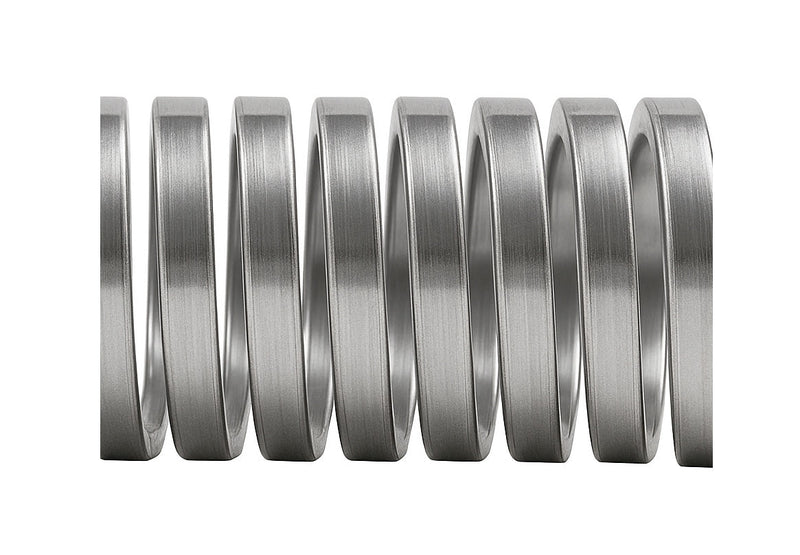

R1S1017-0224 Alfagomma by Kuriyama | SSF Series | Hose Protector | Flat Coil Sleeve | 0.87" ID | Length: 13ft-1-1/2" | Steel

R1S1017-0224 Alfagomma by Kuriyama | SSF Series | Hose Protector | Flat Coil Sleeve | 0.87" ID | Length: 13ft-1-1/2" | Steel

Save $20.09 Save $20.09
$70.31
$70.31 - $70.31
$70.31
$50.22
$50.22 - $50.22
$50.22

Kuriyama of America Inc.
Alfagomma | Hose Protector | SSF Series | Flat Coil Sleeve

ALFAGOMMA Steel Protective Flat Coil Sleeves prolong the life of hose lines that are exposed to rugged operating conditions.
Specifications for Variant SKU: R1S1017-0224 Kuriyama
Brand: Alfagomma
Series: SSF Series
Material(s): Steel
About:
  • Distributes the bending radii to avoid kinking in hose lines and protect the hose from excessive wear caused by sharp edges and abrasion and help protect the hose from deep cuts.
  • The guards are constructed of steel and are plated to resist rust.
Features:
  • For use where hose lines are subjected to excessive abrasion, kinking, or accidental damage.
  • 13ft-1 1/2" (4 m)
Part Number DIN SAE ID 1SN R1AT FXP2 Alfatech 3000 2SN R2AT ABT3K ABT4k ABT5K ABT6k Weight(lbs/coil)
in mm DN Size DN Size DN Size DN Size
R1S1017-0134 0.51" 13.0mm 1.14 lbs
R1S1017-0154 0.61" 15.5mm 6 -04 1.38 lbs
R1S1017-0194 0.75" 19.0mm 10 -06 8 -05 2.47 lbs
R1S1017-0224 0.87" 22.0mm 12 -08 10 -06 10 -06 2.87 lbs
R1S1017-0264 1.02" 26.0mm 16 -10 12 -08 12 -08 3.59 lbs
R1S1017-0284 1.10" 28.0mm 3.83 lbs
R1S1017-0304 1.18" 30.0mm 20 -12 16 -10 25 -16 4.13 lbs
R1S1017-0344 1.34" 34.0mm 20 -12 16
20		 -10
-12		 20 -12 4.42 lbs
R1S1017-0414 1.61" 41.0mm 25 -16 25 -16 25 -16 25 -16 8.19 lbs
R1S1017-0484 1.89" 48.0mm 9.22 lbs
R1S1017-0544 2.13 " 54.0mm 32 -20 32 -20 32 -20 8.41 lbs
R1S1017-0604 2.36" 60.0mm 40 -24 40 -24 11.70 lbs
