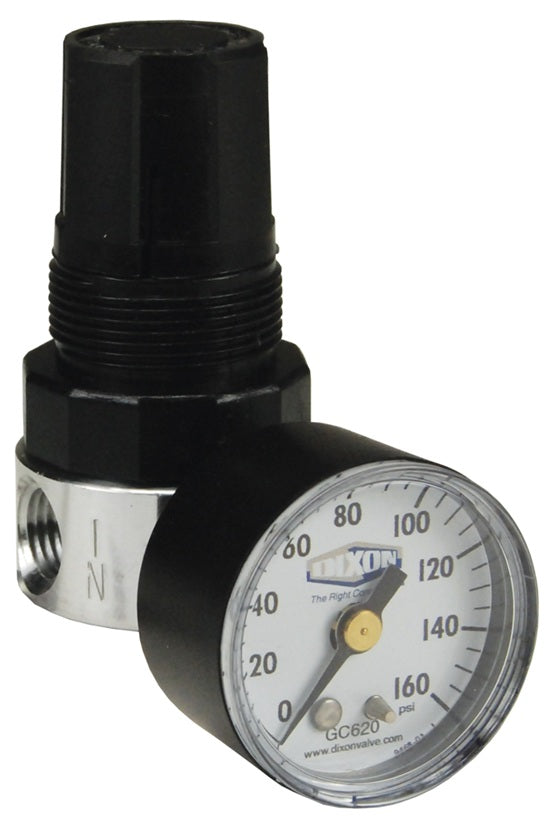

R374-02CG Watts by Dixon Valve | R643-Series | Miniature Regulator | 1/4" Size | 10 SCFM | Aluminum | with Gauge | 2 - 125 PSIG Pressure Range

Save $4.75

$56.35

$56.35 - $56.35

$56.35

$51.60

$51.60 - $51.60

$51.60

Dixon Valve
Watts | R643-Series | Miniature Regulator

Pressure Range: 2 - 125 PSIG (.15 - 8.5 bar)

Dixon Valve
Watts | F602-Series Hi-Flow | Filter

16 oz. bowl

For air service only.

Quantity

Specifications for Variant SKU: R374-02CG Dixon
Brand:	Watts
Series:	R643-Series

Features:
Relieving type Diaphragm operated Non-rising adjusting knob 1/8" gauge port
Specifications:
Pressure range 2 - 125 PSIG (.15 - 8.5 bar) Inlet pressure: 300 PSIG (20.4 bar) maximum Temperature range: 40°F (4°C) to 120°F (49°C) FRL's are designed for air service only, unless otherwise indicated. SCFM ratings given at 100 PSIG inlet pressure.
Dimensions:

Part Number With Gauge	Part Number Without Gauge	Size	Flow (SCFM)	Body Material
R364-02CG	R364-02C	1/4"	10 SCFM	Brass
R374-02CG	R374-02C	1/4"	10 SCFM	Aluminum

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
