R507-6X6 Couplamatic R5 Series Coupling - SAE 45° - Female Swivel - 5/16" Hose ID - 5/8x18 Thread Size

R507-6X6 by Couplamatic | R5 Series Coupling | 5/16" Hose ID x 5/8x18 Thread Size SAE 45° Female Swivel | Straight | Trivalent Zinc Plating | Pack of 10

Save $28.09 Save $28.09
$70.23
$70.23 - $70.23
$70.23
$42.14
$42.14 - $42.14
$42.14

Couplamatic Systems Inc.
R5 Series - SAE 45° - Female Swivel

Package Quantity: 10 EA

Specifications for Variant SKU: R507-6X6 Couplamatic | 10 |
Series: R5 Series
Shape (Orientation): Straight
Ends Configuration: 3/8in Female SAE 45 Flare, 5/16in Hose Barb
Material(s): Steel
Compatible with the following Series: 58MBA Series  |   HTR5 Hi-Temp R5 Series
Description:
  • The R5 Series Couplings are compatible with virtually all Crimp Machines and can be crimped with a standard straight crimp or bubble crimp.
  • Trivalent Zinc Plating.

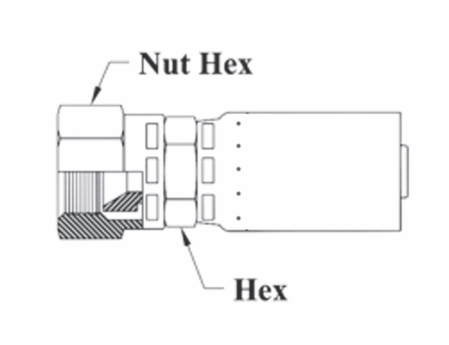

Part Number Hose ID Tube Size Thread Size Hex Size Nut Hex Cross Reference Part Numbers
Weatherhead 069E
R507-6X6 5/16" 3/8" 5/8x18 11/16" 3/4" 06906E-406
R507-12X12 5/8" 3/4" 1-1/16x14 1" 1-1/4" 06912E-412

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.

Couplamatic Systems Inc

Couplamatic Systems Inc

In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.
