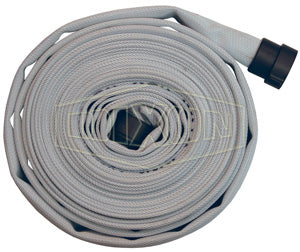

R515-50RAF Dixon 500# All Polyester Rack Hose (Non-UL Labeled) - Coiled - Coupled - Female x Male NST(NH) Rocker Lug Expansion Ring Couplings (Aluminum) - 1-1/2" Hose Size - 50ft Length

R515-50RAF Dixon 500# All Polyester Rack Hose (Non-UL Labeled) - Coiled - Coupled - Female x Male NST(NH) Rocker Lug Expansion Ring Couplings (Aluminum) - 1-1/2" Hose Size - 50ft Length

Save $20.23 Save $20.23
$182.07
$182.07 - $182.07
$182.07
$161.84
$161.84 - $161.84
$161.84

Dixon Fire Fittings
Fire Hose - 500# All Polyester Rack Hose - Non-UL Labeled - Coupled

For pin rack service / emergency fire fighting only, not to be used for washdown
Specifications for Variant SKU: R515-50RAF Dixon
Series: Fire Hose
Hose Color(s): White/Off-White
Internal Diameter: 1.50in
Tubing Construction: Thermoplastic Elastomer
Cover Construction: Polyester Textile Braid
Ends Configuration: 1-1/2in Male NST, 1-1/2in Female NST
Features:
  • Outer construction: single jacket, all polyester.
  • Tube construction: clear thermoplastic.
  • Proof pressure: 500 PSI at ambient temperature 70°F (21°C)
  • Service test pressure: 250 PSI at ambient temperature 70°F (21°C)
  • Working pressure: 225 PSI at ambient temperature 70°F (21°C)
Folded Hose
Part Number		 Coiled Hose
Part Number		 Hose Size Coupling Type Length Folded Hose
Weight
(Lbs.)		 Coiled Hose
Weight
(Lbs.)
R515-50CBF/F R515-50CBF 1-1/2" Combo Lug, Brass NST (NH) 50 ft 6.8000 17.0000
R515100CBF/F R515100CBF 1-1/2" Combo Lug, Brass NST (NH) 100 ft 13.4400 13.5000
R515-50RAF/F R515-50RAF 1-1/2" Combo Lug, Aluminum NST (NH) 50 ft 6.5800 14.5000
R515100RAF/F R515100RAF 1-1/2" Combo Lug, Aluminum NST (NH) 100 ft 11.9200 13.5800
