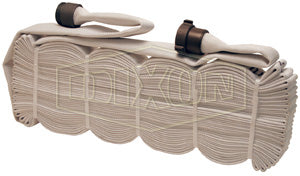

R515U50RAF/F Dixon 500# All Polyester Rack Hose (UL Labeled) - Folded - Coupled - Female x Male NST(NH) Rocker Lug Expansion Ring Couplings (Aluminum) - 1-1/2" Hose Size - 50ft Length

R515U50RAF/F Dixon 500# All Polyester Rack Hose (UL Labeled) - Folded - Coupled - Female x Male NST(NH) Rocker Lug Expansion Ring Couplings (Aluminum) - 1-1/2" Hose Size - 50ft Length

Save $19.22 Save $19.22
$173.00
$173.00 - $173.00
$173.00
$153.78
$153.78 - $153.78
$153.78

Dixon Fire Fittings
Fire Hose - 500# All Polyester Rack Hose - UL Labeled - Coupled

For pin rack service / emergency fire fighting only, not to be used for washdown
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: R515U50RAF/F Dixon
Series: Fire Hose
Hose Color(s): White/Off-White
Internal Diameter: 1.50in
Tubing Construction: Thermoplastic Elastomer
Cover Construction: Polyester Textile Braid
Ends Configuration: 1-1/2in Male NST, 1-1/2in Female NST
Features:
  • Outer construction: single jacket, all polyester.
  • Tube construction: clear thermoplastic.
  • Proof pressure: 300 PSI at ambient temperature 70°F (21°C).
  • Service test pressure: 150 PSI at ambient temperature 70°F (21°C).
  • Working pressure: 135 PSI at ambient temperature 70°F (21°C).
  • Underwriters Listed
Folded Hose
Part Number		 Coiled Hose
Part Number		 Hose Size Coupling Type Length Folded Hose
Weight
(Lbs.)		 Coiled Hose
Weight
(Lbs.)
R515U100CBF/F R515U100CBF 1-1/2" Combo Lug, Brass NST (NH) 100 ft 14.5500 10.5000
R515U50RAF/F R515U50RAF 1-1/2" Combo Lug, Aluminum NST (NH) 50 ft 6.2000 -
