R526-20X20 Couplamatic R5 Series Coupling - JIC/SAE Dual Seat - 90° Female Swivel - 1-1/8" Hose ID - 1-5/8x12 Thread Size

R526-20X20 by Couplamatic | R5 Series Coupling | 1-1/8" Hose ID x 1-5/8x12 Thread Size JIC/SAE Dual Seat Female Swivel | 90° Elbow | Trivalent Zinc Plating | Pack of 5

Save $146.33 Save $146.33
$365.83
$365.83 - $365.83
$365.83
$219.50
$219.50 - $219.50
$219.50

Couplamatic Systems Inc.
R5 Series - JIC/SAE Dual Seat - 90° Female Swivel

Package Quantity: 5 EA

Specifications for Variant SKU: R526-20X20 Couplamatic | 5 |
Series: R5 Series
Shape (Orientation): 90 Degree
Ends Configuration: 1-1/4in Female JIC, 1-1/8in Hose Barb, 1-1/4in Female SAE 45 Flare
Material(s): Steel
Compatible with the following Series: 58MBA Series  |   HTR5 Hi-Temp R5 Series
Description:
  • The R5 Series Couplings are compatible with virtually all Crimp Machines and can be crimped with a standard straight crimp or bubble crimp.
  • Trivalent Zinc Plating.

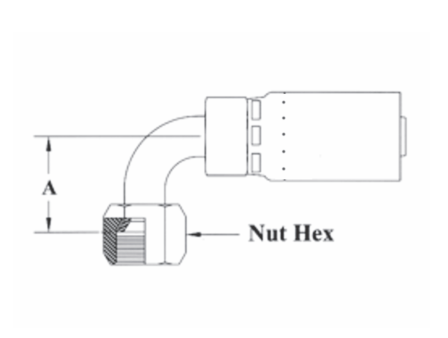

Part Number Hose ID Tube Size Thread Size A-Drop Inches Nut Hex Cross Reference Part Numbers
Weatherhead 069E
R526-4X4 3/16" 1/4" 7/16x20 0.81" 9/16" 06904E-664
R526-5X5 1/4" 5/16" 1/2x20 0.83" 5/8" 06905E-665
R526-6X6* 5/16" 3/8" 9/16x18 0.91" 11/16" 06906E-666
R526-8X8 13/32" 1/2" 3/4x16 1.15" 7/8" 06908E-668
R526-10X10 1/2" 5/8" 7/8x14 1.23" 1" 06910E-670
R526-12X12* 5/8" 3/4" 1-1/16x12 1.88" 1-1/4" 06912E-672
R526-16X16* 7/8" 1" 1-5/16x12 2.20" 1-1/2" 06916E-676
R526-20X20 1-1/8" 1-1/4" 1-5/8x12 3.25" 2" 06920E-677

*JIC Seat & Thread Only

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
