R532-4X4 Couplamatic R5 Series Coupling - O-Ring Face Seal (ORF) - 90° Female Swivel - 3/16" Hose ID - 9/16x18 Thread Size

R532-4X4 by Couplamatic | R5 Series Coupling | 3/16" Hose ID x 9/16x18 Thread Size O-Ring Face Seal | ORF Female Swivel | 90° Elbow | Trivalent Zinc Plating | Pack of 10

Save $58.33

$145.83

$145.83 - $145.83

$145.83

$87.50

$87.50 - $87.50

$87.50

Couplamatic Systems Inc.
R5 Series - O-Ring Face Seal (ORF) - 90° Female Swivel

Package Quantity: 10 EA

Specifications for Variant SKU: R532-4X4 Couplamatic \| 10 \|
Series:	R5 Series
Shape (Orientation):	90 Degree
Ends Configuration:	1/4in Female O-Ring Face Seal, 3/16in Hose Barb
Material(s):	Steel
Compatible with the following Series:	58MBA Series \| HTR5 Hi-Temp R5 Series

Description:
The R5 Series Couplings are compatible with virtually all Crimp Machines and can be crimped with a standard straight crimp or bubble crimp. Trivalent Zinc Plating.

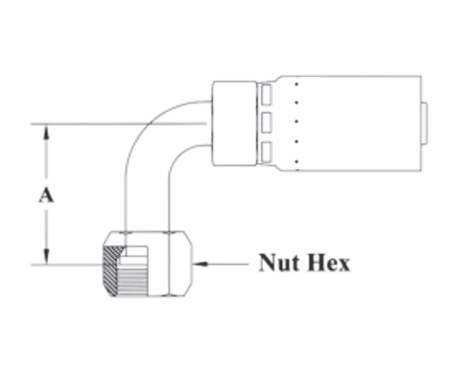

Part Number	Hose ID	Thread Size	Tube OD	A-DropInches	Nut Hex
R532-4X4	3/16"	9/16x18	1/4"	.78"	11/16"
R532-6X6	5/16"	11/16x16	3/8"	.90"	13/16"
R532-8X8	13/32"	13/16x16	1/2"	1.15"	15/16"
R532-12X12	5/8"	1-3/16x12	3/4"	1.88"	1-3/8"

Couplamatic Systems Inc

In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.
