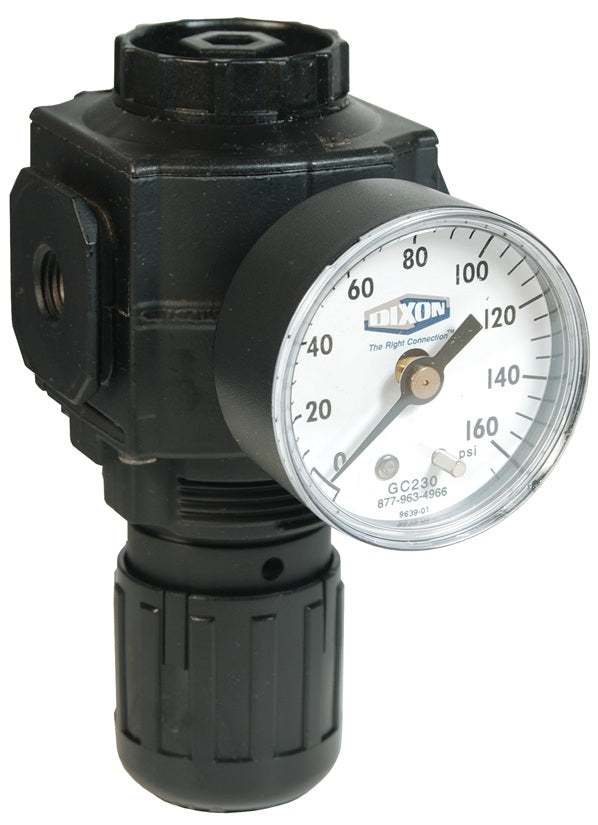

R73G-3RG by Dixon Valve | R73G Series 1 | Compact Regulator | 3/8" Port Size | 144 SCFM | with Gauge | 5-150 PSI Pressure Range

Save $57.87

$144.67

$144.67 - $144.67

$144.67

$86.80

$86.80 - $86.80

$86.80

Dixon Valve
R73G Series 1 | Compact Regulator

Pressure range: 5-150 PSI

In-line or modular installation.

For air service only.

Specifications for Variant SKU: R73G-3RG Dixon
Series:	R73G Series 1

Features:
In-line or modular installation. Relieving type. Two full flow 1/4" NPT gauge ports. RG models supplied with GC230 gauge.
Specifications:
Pressure range: 5-150 PSI Inlet pressure: 300 PSI Maximum temperature: 175°F (80°C)
Dimensions:

With Gauge Part Number	Without Gauge Part Number	Port Size	Flow (SCFM)
R73G-2RG	R73G-2R	1/4"	91 SCFM
R73G-3RG	R73G-3R	3/8"	144 SCFM
R73G-4RG	R73G-4R	1/2"	144 SCFM

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
