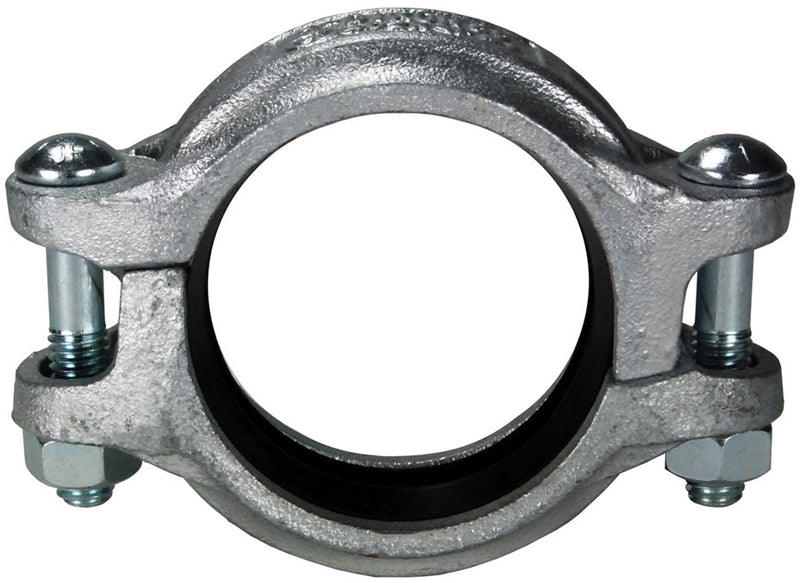

R78BU by Dixon Valve | Grooved Rigid Coupling | Series-R | Style 5 | 8" Nominal Size | 8.625" Pipe OD | Nitrile Rubber Gasket | Galvanized Ductile Iron

Save $37.46

$93.65

$93.65 - $93.65

$93.65

$56.19

$56.19 - $56.19

$56.19

Dixon Valve
Grooved Rigid Coupling | Series-R | Style 5

Ideal for fire protection, plumbing, low pressure air, and drainage.

Specifications for Variant SKU: R78BU Dixon
Series:	Series-R
Shape (Orientation):	Straight
Material(s):	Ductile Iron
Seal Material(s):	Buna-N/Nitrile Rubber
Maximum Clamp I.D.:	8.625

Features:
Lightweight, low pressure. Small gripping teeth hold the housing into the groove allowing a straight run of pipe and preventing any flex at the joint.
Materials:
Galvanized Ductile Iron.
Approvals:
UL listed and Factory Mutual approved.


Galvanized Ductile Iron with EPDM Gasket Part Number	Galvanized Ductile Iron with Nitrile Rubber Gasket Part Number	Nominal Size	Pipe O.D.	Maximum Working Pressure PSI at 70°F (21°C)	Maximum End Load (Lbs.)	Bolts			Dimensions
Galvanized Ductile Iron with EPDM Gasket Part Number		Nominal Size	Pipe O.D.	Maximum Working Pressure PSI at 70°F (21°C)	Maximum End Load (Lbs.)	Qty	Size	Length	A	B	C
R72	R72BU	2"	2.375"	175 PSI	4425 lbs	2	3/8"	2"	4-7/8"	3-17/32"	1-27/32"
R725	R725BU	2-1/2"	2.875"	175 PSI	6490 lbs	2	3/8"	2"	5-5/8"	3-45/64"	1-3/4"
R73	R73BU	3"	3.500"	175 PSI	9620 lbs	2	1/2"	2-3/4"	6-3/8"	4-41/64"	1-27/32"
R74	R74BU	4"	4.500"	175 PSI	12720 lbs	2	1/2"	2-3/4"	7-45/64"	5-15/16"	2"
R76	R76BU	6"	6.625"	175 PSI	27570 lbs	2	5/8"	3-1/4"	10-25/32"	8-7/64"	2-3/64"
R78	R78BU	8"	8.625"	175 PSI	35050 lbs	2	3/4"	4-1/4"	13-25/32"	10"	2-21/64"
