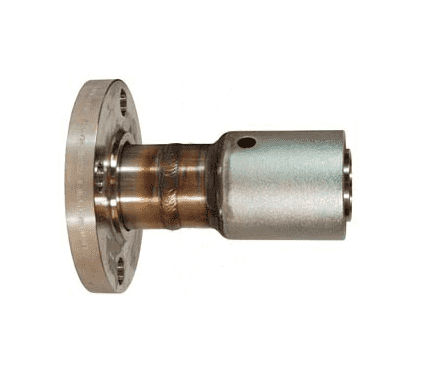

R96P1LJR15 Dixon 6" Stainless Steel External Swage Floating Flange Assembly - Hose OD from 7" to 7-4/64"

R96P1LJR15 Dixon Valve 6" Stainless Steel External Swage Floating Flange Assembly - Hose OD from 7" to 7-4/64"

$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00

External Swage Flanged Assemblies - Floating Flange - Stainless Steel

Specifications for Variant SKU: R96P1LJR15 Dixon
Shape (Orientation): Straight
Ends Configuration: 6in 150# Flange, 6in Hose Barb
Material(s): 316 Stainless Steel, Carbon Steel
Features:
  • 150# ASA flange drilling.
  • The Holedall coupling provides long-lasting efficiency and safety.
  • The coupling system requires no bolts and results in a clean coupling with no protrusions.
  • Carbon steel stem, ferrule and flange.
Safety Notes:
  • Dixon Holedall stems and ferrules are specifically designed to be used together as a coupling system.
  • Due to differences in dimensions and tolerances, for safety reasons, do not use other manufacturer's stems or ferrules with Dixon Holedall products.
  • Do not use a wrench or vice on ferrule.
  • Holedall couplings, regardless of coupling style, are never to be used for steam service at any pressure.
  • Holedall fittings are not to be used with cable reinforced high-pressure hose, 4 or 6 braid wire hydraulic hose or any other service not listed in the recommendations.
  • Externally swaged Holedall couplings, to perform satisfactorily, must be applied properly in accordance with Dixon's assembly procedures, using correct die and ferrule for that particular hose end OD.
  • Hose service working pressure (including surges and spikes) is never to exceed the maximum recommended working pressure for the fitting. The assembly's (hose + coupling) maximum working pressure is the lesser of the hose rated working pressure or the coupling rated working pressure.
  • Media being transported through the hose should be compatible with the stem material. Compatibility of ferrule material with the environment in which it will be used is recommended.
Hose OD
Part Number Hose ID From To Weight (Lbs.)
R32P1LJR15 2" 2-28/64" 2-40/64" 9.0000
R32P2LJR15 2" 2-41/64" 2-48/64" 9.0000
R32P3LJR15 2" 2-49/64" 2-56/64" 9.0000
R48P1LJR15 3" 3-30/64" 3-40/64" 16.0000
R48P2LJR15 3" 3-41/64" 3-48/64" 16.0000
R48P3LJR15 3" 3-49/64" 3-56/64" 16.0000
R64P1LJR15 4" 4-40/64" 4-44/64" 23.0000
R64P2LJR15 4" 4-45/64" 4-52/64" 23.0000
R64P3LJR15 4" 4-53/64" 4-60/64" 23.0000
R96P1LJR15 6" 7" 7-4/64" 58.0000
R96P2LJR15 6" 7-5/64" 7-12/64" 58.0000
R96P3LJR15 6" 7-13/64" 7-20/64" 58.0000

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
