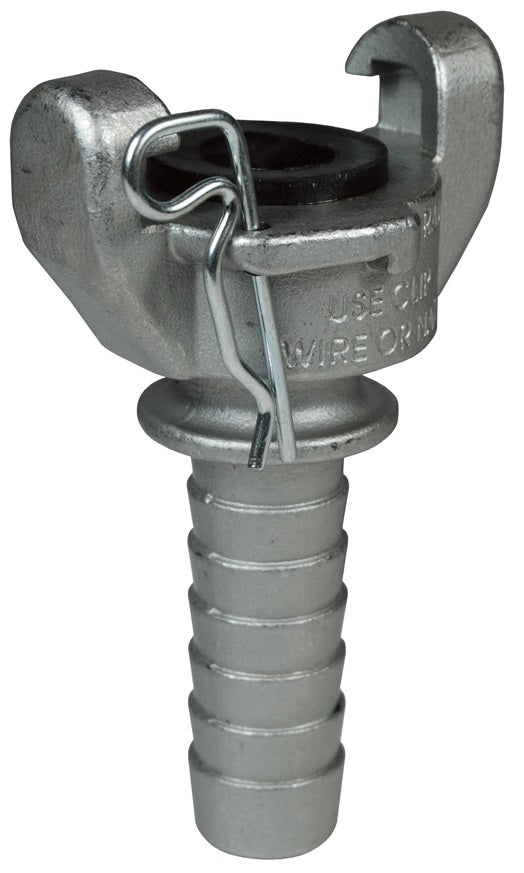

RAM11 Air King® by Dixon Valve | Pneumatic Fitting | 2-Lug Hose End | Chicago Style x 1" Hose ID | 316 Stainless Steel

Name: RAM11 Air King® by Dixon Valve | Pneumatic Fitting | 2-Lug Hose End | Chicago Style x 1" Hose ID | 316 Stainless Steel
Brand: Dixon
SKU: RAM11 Dixon
Price: 40.24 USD
Availability: InStock

Save $26.83

$67.07

$67.07 - $67.07

$67.07

$40.24

$40.24 - $40.24

$40.24

Dixon Valve
Air King® Universal Coupling | 2-Lug Hose End | Chicago Style x Hose Barb

Air King is for air and water service only.

Specifications for Variant SKU: RAM11 Dixon
Shape (Orientation):	Straight
Ends Configuration:	2-Lug Chicago, 1in Hose Barb
Material(s):	316 Stainless Steel
Seal Material(s):	Rubber

Features:
Can be used with Air King ferrules Supplied with safety clip Supplied with rubber washer, part # AWR4
Specifications:
Air King meets pressure requirements as specified in A-A-59553 commercial item description superseding Mil Spec.WWC-633D. Pressure rating: 150 PSI at ambient temperature 70°F (21°C).
Use:
Use of supplied safety clip guarantees the fittings are properly connected because the safety pin will not go through the holes in mating fittings until couplings are locked in place. Only one Air King safety clip or wire type retainer is required for each Air King universal coupling.
Safety Notes:
Never use any Air King coupling for steam service! Air King is for air and water service ONLY. The use of an Air King safety clip or wire type retainer is necessary to ensure Air King universal couplings will not become accidentally disconnected. To provide protection against coupling breakage and related hazards, Dixon recommends the use of a whip hose.

Iron Part Number	Brass Part Number	316 Stainless Steel Part Number	Size
-	-	RAMH	3/8"
AM1	-	RAM1	1/2"
AM5	AB5	-	5/8"
AM6	-	RAM6	3/4"
AM11	-	RAM11	1"
