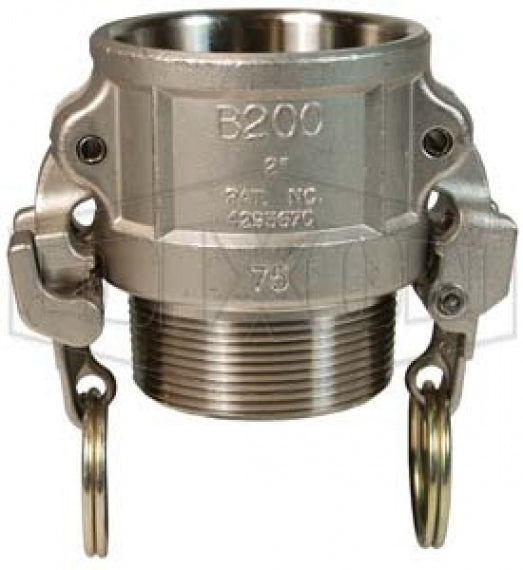

RB075EZ by Dixon Valve | EZ Boss-Lock Cam & Groove Coupler | Type B | 3/4" Coupler x 3/4" Male NPT | 316 Stainless Steel

Name: RB075EZ by Dixon Valve | EZ Boss-Lock Cam & Groove Coupler | Type B | 3/4" Coupler x 3/4" Male NPT | 316 Stainless Steel
Brand: Dixon
SKU: RB075EZ Dixon
Price: 70.57 USD
Availability: InStock

Save $47.05

$117.62

$117.62 - $117.62

$117.62

$70.57

$70.57 - $70.57

$70.57

Dixon Valve
EZ Boss-Lock Cam & Groove Coupler | Type B | Coupler x Male NPT

Designed for use with liquids.

Specifications for Variant SKU: RB075EZ Dixon
Brand:	EZ Boss-Lock
Shape (Orientation):	Straight
Cam Type:	Type B
Ends Configuration:	3/4in Female Cam & Groove, 3/4in Male NPT
Material(s):	316 Stainless Steel
Seal Material(s):	Buna-N/Nitrile Rubber

Features:
Resistant to accidental disconnection when dragged. The release lever opens in the direction opposite to the cam arm, so movements that tend to open the release lever also tend to close the cam arm. Rotating action helps keep the locking device free of debris. Designed to protect critical parts from impact and to withstand rugged use.
Construction:
Nitrile Rubber gasket.
How It Works:
To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down. Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter. No more fumbling with clamps, wire, clips or pins, just close the handles and the locking mechanism is engaged. Extremely easy to open, the releaser lever is under your thumb when you want to open the fitting, ergonomic.
Safety Note:
If the rotating lever is not flush with the handle, it is not properly engaged. Under no circumstances should cam and groove couplings be used for compressed air or steam service! Under no circumstances should the EZ Boss-Lock cam arms be used on any fitting not specifically designed for their use. Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F / 21°C with a standard seal installed. For use at elevated temperature or other unusual operating conditions, consult Dixon.
Specifications:
Produced to interchange with all product produced to Commercial Item Description A-A-59326D.

356T6 Aluminum Part Number	Brass Part Number	316 Stainless Steel Part Number	Size	Max. Operating Pressure
-	-	RB050EZ	3/4" x 1/2"	150 PSI
-	BB075EZ	RB075EZ	3/4"	250 PSI
AB100EZ	BB100EZ	RB100EZ	1"	250 PSI
-	BB125EZ	RB125EZ	1-1/4"	250 PSI
AB150EZ	BB150EZ	RB150EZ	1-1/2"	250 PSI
AB200EZ	BB200EZ	RB200EZ	2"	250 PSI
AB300EZ	BB300EZ	RB300EZ	3"	125 PSI
AB400EZ	-	RB400EZ	4"	100 PSI
-	-	RB600EZ	6"	75 PSI

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
