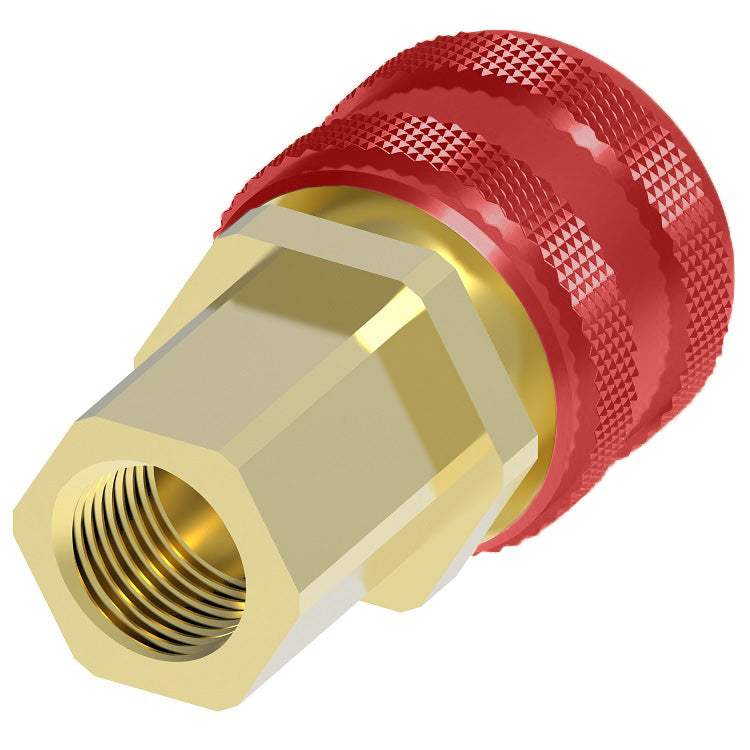

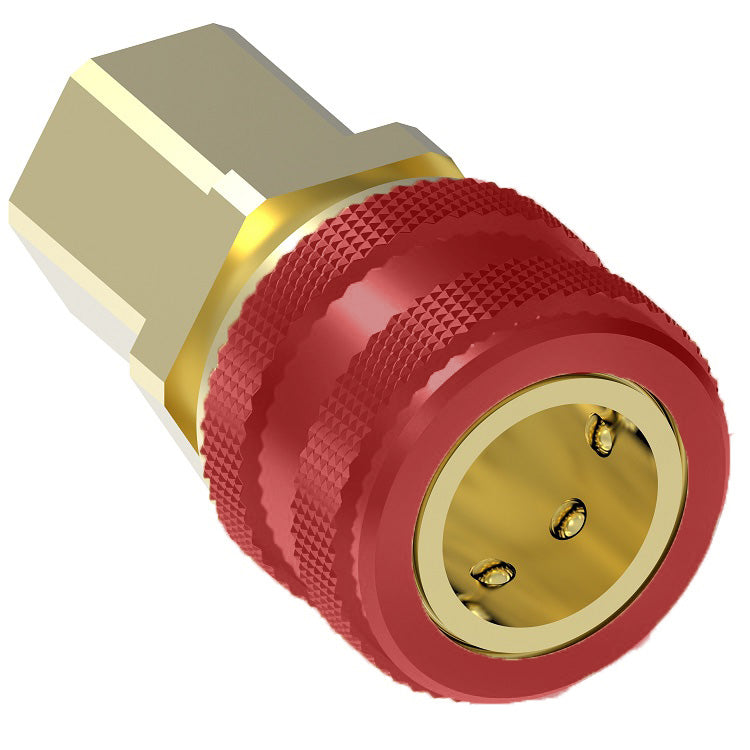

RD705LSL Hansen® by Danfoss | Quick Disconnect Coupling | 700 Series | 9/16" Female UNF x 1/4" Body Size | Acetylene Service Socket | With Sleeve Lock | Buna-N Seal | Brass

RD705LSL Hansen® by Danfoss | Quick Disconnect Coupling | 700 Series | 9/16" Female UNF x 1/4" Body Size | Acetylene Service Socket | With Sleeve Lock | Buna-N Seal | Brass

$35.04 - $35.04

$35.04

$35.04 - $35.04

$35.04

Hansen® by Danfoss
Quick Disconnect Coupling | 700 Series

Quick Disconnect for Industrial Gas Applications.

Danfoss Hansen 600/700 Series quick connect couplings are designed for use in oxyacetylene service. The 600/700 Series can also be used with compressed air and other gases.

Quantity

Specifications for Variant SKU: RD705LSL Danfoss
Brand:	Hansen
Series:	700 Series
Shape (Orientation):	Straight
Material(s):	Brass
Seal Material(s):	Buna-N/Nitrile Rubber

Features:	Safety sleeve lock prevents accidental disconnections. Non-Interchangeable design prevents crossing of lines. Color coded sleeves for easy identification: –600 green, –700 red. Designed for use with compressed air and other gases.
Applications & Markets:	Breathing Equipment Welding Shipyards General pneumatics Construction Nitrous Oxide
Materials:	Standard body material: Brass Standard seal material: Buna-N
Specifications:	Series 600 and 700 couplings with sleeve lock feature comply with OSHA requirements,* which state couplings shall be a type that cannot be unlocked or disconnected by means of straight pull without rotary motion. * Series 600 and 700 couplings with sleeve lock feature comply with O.S.H.A. requirements, Sec. 1915.35 (f) (5), 1916.35 (f)(5), 1917.35 (f)(5), and 1926.350 (f)(5).
Warning:	Series 700 couplings are not to be used with acetylene at pressures exceeding 15 psig. Oxygen increases combustibility. Fire and explosion could occur causing severe bodily injury or death. Be sure to select the proper coupling for your application and use it only within the specified service pressure range.

Series	Body Size	Max. Operating Pressure		Min. Burst Pressure		Rated Flow
600 & 700	1/4"	103 bar	1,500 psi	412 bar	6,000 psi	595 lpm	21 scfm


Socket/Female (Figure 1)						Plug/Male (Figure 2)
700 Series \| Female Thread End Connections
Standard* Part Number	Acetylene Service Part Number	Coupling Type	Body Size	Port Size	Thread	Figure	Dimensions
Standard* Part Number	Acetylene Service Part Number	Coupling Type	Body Size	Port Size	Thread	Figure	A	B	Hex	C	D	Hex
RD700	-	Socket/Female	1/4"	1/8"	1/8-27 Female NPTF	1	1.74" (44.2mm)	1.00" (25.4mm)	0.69" (17.5mm)	-	-	-
-	-	Plug/Male	-	-	-	-	-	-	-	-	-	-

RD702	RD702SL	Socket/Female	1/4"	1/4"	1/4-18 Female NPTF	1	1.96" (49.8mm)	1.00" (25.4mm)	0.69" (17.5mm)	-	-	-
A2	-	Plug/Male	1/4"	-	1/4-18 Female NPTF	2	-	-	-	1.46" (37.1mm)	0.77" (19.6mm)	0.69" (17.5mm)

RD704	RD704SL	Socket/Female	1/4"	3/8"	3/8-18 Female NPTF	1	2.04" (51.8mm)	1.00" (25.4mm)	0.69" (17.5mm)	-	-	-
-	-	Plug/Male	-	-	-	-	-	-	-	-	-	-

RD705L	RD705LSL	Socket/Female	1/4"	9/16"	9/16-18 Female UNF**	1	1.96" (49.8mm)	1.00" (25.4mm)	0.69" (17.5mm)	-	-	-
A5L	-	Plug/Male	1/4"	-	9/16-18 Female UNF**	2	-	-	-	1.38" (35.1mm)	0.77" (19.6mm)	0.69" (17.5mm)

** L.H. Thread-30° Female Flare

* Without sleeve lock
