RD708SL Hansen® by Danfoss | Quick Disconnect Coupling | 700 Series | Hose Barb End | 3/8" Hose ID x 1/4" Body Size | Acetylene Service Socket | With Sleeve Lock | Buna-N Seal | Brass
RD708SL Hansen® by Danfoss | Quick Disconnect Coupling | 700 Series | Hose Barb End | 3/8" Hose ID x 1/4" Body Size | Acetylene Service Socket | With Sleeve Lock | Buna-N Seal | Brass
RD708SL Hansen® by Danfoss | Quick Disconnect Coupling | 700 Series | Hose Barb End | 3/8" Hose ID x 1/4" Body Size | Acetylene Service Socket | With Sleeve Lock | Buna-N Seal | Brass

RD708SL Hansen® by Danfoss | Quick Disconnect Coupling | 700 Series | Hose Barb End | 3/8" Hose ID x 1/4" Body Size | Acetylene Service Socket | With Sleeve Lock | Buna-N Seal | Brass

$29.74 - $29.74
$29.74
$29.74 - $29.74
$29.74

Hansen® by Danfoss
Quick Disconnect Coupling | 700 Series

Quick Disconnect for Industrial Gas Applications.

Danfoss Hansen 600/700 Series quick connect couplings are designed for use in oxyacetylene service. The 600/700 Series can also be used with compressed air and other gases.
Specifications for Variant SKU: RD708SL Danfoss
Brand: Hansen
Series: 700 Series
Shape (Orientation): Straight
Material(s): Brass
Seal Material(s): Buna-N/Nitrile Rubber
Features:
  • Safety sleeve lock prevents accidental disconnections.
  • Non-Interchangeable design prevents crossing of lines.
  • Color coded sleeves for easy identification: –600 green, –700 red.
  • Designed for use with compressed air and other gases.
Applications & Markets:
  • Breathing Equipment
  • Welding
  • Shipyards
  • General pneumatics
  • Construction
  • Nitrous Oxide
Materials:
  • Standard body material: Brass
  • Standard seal material: Buna-N
Specifications:
  • Series 600 and 700 couplings with sleeve lock feature comply with OSHA requirements,* which state couplings shall be a type that cannot be unlocked or disconnected by means of straight pull without rotary motion.
  • * Series 600 and 700 couplings with sleeve lock feature comply with O.S.H.A. requirements, Sec. 1915.35 (f) (5), 1916.35 (f)(5), 1917.35 (f)(5), and 1926.350 (f)(5).
Warning:
  • Series 700 couplings are not to be used with acetylene at pressures exceeding 15 psig.
  • Oxygen increases combustibility. Fire and explosion could occur causing severe bodily injury or death. Be sure to select the proper coupling for your application and use it only within the specified service pressure range.
Series Body Size Max. Operating Pressure Min. Burst Pressure Rated Flow
600 & 700 1/4" 103 bar 1,500 psi 412 bar 6,000 psi 595 lpm 21 scfm

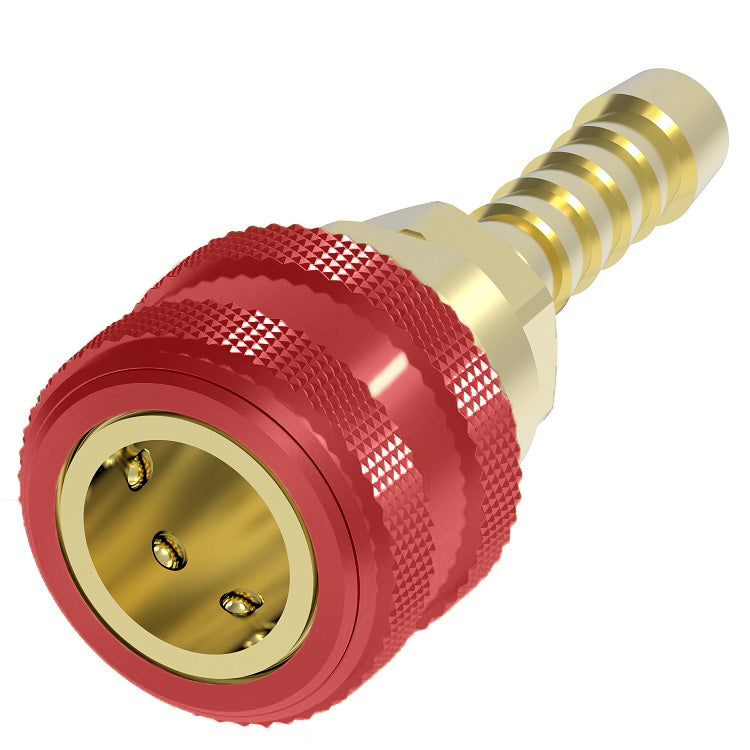

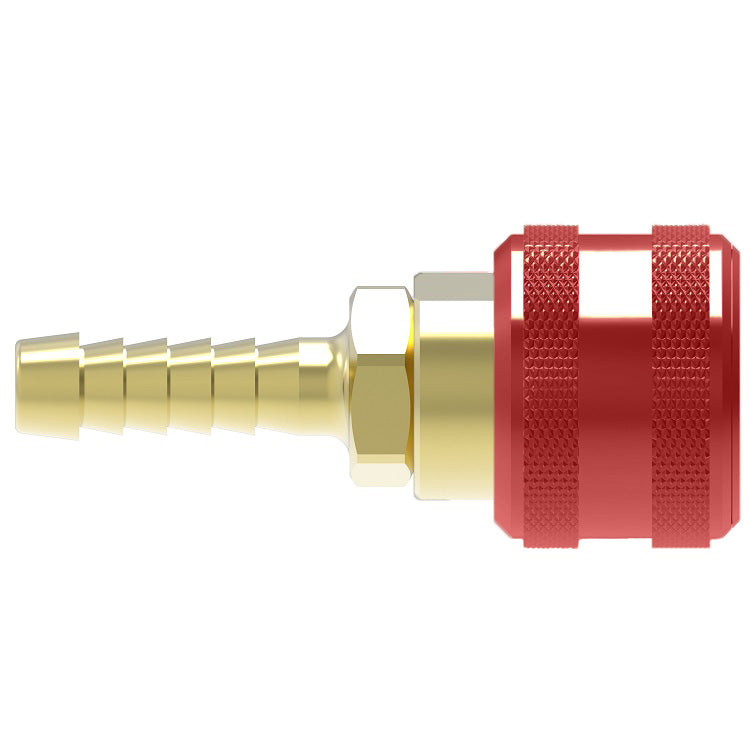

Socket/Female (Figure 1)
Hose Barb Ends (Figure 1A)
Plug/Male (Figure 2)
700 Series | Hose Barb End Connections
Standard*
Part Number		 Acetylene Service
Part Number		 Coupling Type Body Size Hose ID End Type Figure Dimensions
A B C D
RD706 RD706SL Socket/Female 1/4" 1/4" Hose Barb 1 2.48"
(63.0mm)		 1.00"
(25.4mm)		 - -
A7 - Plug/Male 1/4" 1/4" Hose Barb 2 - - 2.00"
(50.8mm)		 0.56"
(14.2mm)

RD706P - Socket/Female 1/4" 1/4" Push-On Hose Barb 1 2.25"
(57.2mm)		 1.00"
(25.4mm)		 - -
- - Plug/Male - - - - - - - -

RD707 RD707SL Socket/Female 1/4" 5/16" Hose Barb 1 2.48"
(63.0mm)		 1.00"
(25.4mm)		 - -
A8 - Plug/Male 1/4" 5/16" Hose Barb 2 - - 2.06"
(52.3mm)		 0.56"
(14.2mm)

RD708 RD708SL Socket/Female 1/4" 3/8" Hose Barb 1 2.48"
(63.0mm)		 1.00"
(25.4mm)		 - -
A9 - Plug/Male 1/4" 3/8" Hose Barb 2 - - 2.10"
(53.3mm)		 0.56"
(14.2mm)

* Without sleeve lock

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
