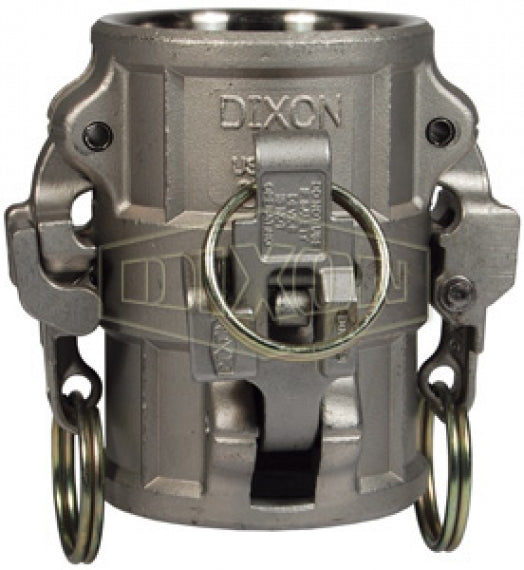

RDD200EZ by Dixon Valve | Boss-Lock Cam & Groove Spool Coupler | Type DD | 2" Coupler x 2" Coupler | 316 Stainless Steel

Name: RDD200EZ by Dixon Valve | Boss-Lock Cam & Groove Spool Coupler | Type DD | 2" Coupler x 2" Coupler | 316 Stainless Steel
Brand: Dixon
SKU: RDD200EZ Dixon
Price: 244.64 USD
Availability: InStock

Save $163.09

$407.73

$407.73 - $407.73

$407.73

$244.64

$244.64 - $244.64

$244.64

Dixon Valve
Boss-Lock Cam & Groove Spool Coupler | Type DD | Coupler x Coupler

Designed for use with liquids.

Specifications for Variant SKU: RDD200EZ Dixon
Brand:	Boss-Lock
Shape (Orientation):	Straight
Cam Type:	Other
Ends Configuration:	2in Female Cam & Groove, 2in Female Cam & Groove, Some Ends Match
Material(s):	316 Stainless Steel
Seal Material(s):	Buna-N/Nitrile Rubber

Construction:
Nitrile rubber gasket standard. All Boss-Lock™ couplers are supplied with pull right safety clips.
Safety Notes:
Under no circumstances should cam and groove couplings be used for compressed air or steam service! Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F with a standard seal installed. For use at elevated temperature or other unusual operating conditions, consult Dixon.
How It Works:
To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down. Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.
Specifications:
Produced to interchange with all product produced to Commercial Item Description A-A-59326D.

356T6 Aluminum Part Number	316 Stainless Steel Part Number	Size	Maximum Operating Pressure
ADD200*	RDD200EZ	2"	250 PSI
-	RDD2010EZ*	2" x 1"	125 PSI
ADD2030*	RDD2030EZ*	2" x 3"	125 PSI
ADD300*	RDD300EZ*	3"	125 PSI
ADD3040*	RDD3040EZ*	3" x 4"	100 PSI
ADD400*	RDD400EZ*	4"	100 PSI
-	RDD600EZ*	6"	75 PSI

* Parts are produced as a welded fabrication
