RDD300EZ by Dixon Valve | Boss-Lock Cam & Groove Spool Coupler | Type DD | 3" Coupler x 3" Coupler | 316 Stainless Steel

RDD300EZ by Dixon Valve | Boss-Lock Cam & Groove Spool Coupler | Type DD | 3" Coupler x 3" Coupler | 316 Stainless Steel

Save $28.44 Save $28.44
$399.95
$399.95 - $399.95
$399.95
$371.51
$371.51 - $371.51
$371.51

Dixon Valve

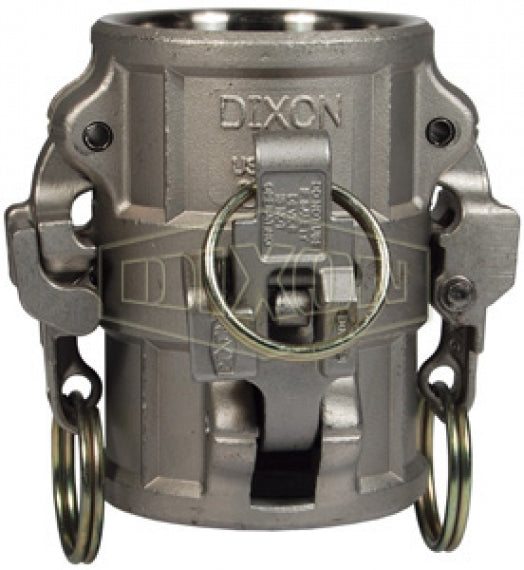

Boss-Lock Cam & Groove Spool Coupler | Type DD | Coupler x Coupler

Designed for use with liquids.
Specifications for Variant SKU: RDD300EZ Dixon
Brand: Boss-Lock
Shape (Orientation): Straight
Cam Type: Other
Ends Configuration: 3in Female Cam & Groove, 3in Female Cam & Groove, Some Ends Match
Material(s): 316 Stainless Steel
Seal Material(s): Buna-N/Nitrile Rubber
Construction:
  • Nitrile rubber gasket standard.
  • All Boss-Lock™ couplers are supplied with pull right safety clips.
Safety Notes:
  • Under no circumstances should cam and groove couplings be used for compressed air or steam service!
  • Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F with a standard seal installed. For use at elevated temperature or other unusual operating conditions, consult Dixon.
How It Works:
  • To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down.
  • Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.
Specifications:
  • Produced to interchange with all product produced to Commercial Item Description A-A-59326D.
356T6 Aluminum
Part Number		 316 Stainless Steel
Part Number		 Size Maximum Operating Pressure
ADD200* RDD200EZ 2" 250 PSI
- RDD2010EZ* 2" x 1" 125 PSI
ADD2030* RDD2030EZ* 2" x 3" 125 PSI
ADD300* RDD300EZ* 3" 125 PSI
ADD3040* RDD3040EZ* 3" x 4" 100 PSI
ADD400* RDD400EZ* 4" 100 PSI
- RDD600EZ* 6" 75 PSI

* Parts are produced as a welded fabrication

Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
