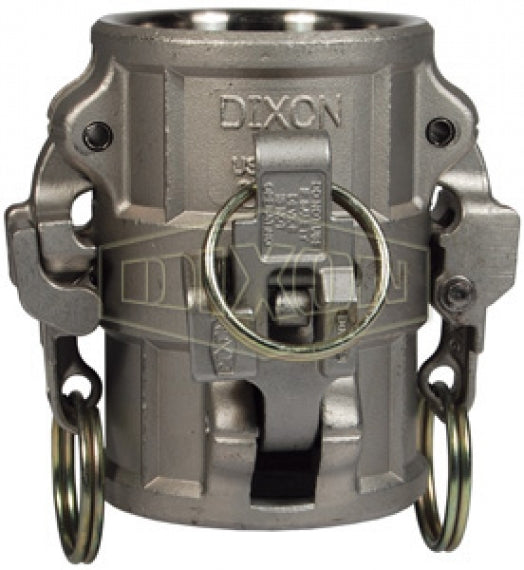

RDD400EZ by Dixon Valve | Boss-Lock Cam & Groove Spool Coupler | Type DD | 4" Coupler x 4" Coupler | 316 Stainless Steel

RDD400EZ by Dixon Valve | Boss-Lock Cam & Groove Spool Coupler | Type DD | 4" Coupler x 4" Coupler | 316 Stainless Steel

Save $330.37 Save $330.37
$825.92
$825.92 - $825.92
$825.92
$495.55
$495.55 - $495.55
$495.55

Dixon Valve
Boss-Lock Cam & Groove Spool Coupler | Type DD | Coupler x Coupler

Designed for use with liquids.
Specifications for Variant SKU: RDD400EZ Dixon
Brand: Boss-Lock
Shape (Orientation): Straight
Cam Type: Other
Ends Configuration: 4in Female Cam & Groove, 4in Female Cam & Groove, Some Ends Match
Material(s): 316 Stainless Steel
Seal Material(s): Buna-N/Nitrile Rubber
Construction:
  • Nitrile rubber gasket standard.
  • All Boss-Lock™ couplers are supplied with pull right safety clips.
Safety Notes:
  • Under no circumstances should cam and groove couplings be used for compressed air or steam service!
  • Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F with a standard seal installed. For use at elevated temperature or other unusual operating conditions, consult Dixon.
How It Works:
  • To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down.
  • Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.
Specifications:
  • Produced to interchange with all product produced to Commercial Item Description A-A-59326D.
356T6 Aluminum
Part Number		 316 Stainless Steel
Part Number		 Size Maximum Operating Pressure
ADD200* RDD200EZ 2" 250 PSI
- RDD2010EZ* 2" x 1" 125 PSI
ADD2030* RDD2030EZ* 2" x 3" 125 PSI
ADD300* RDD300EZ* 3" 125 PSI
ADD3040* RDD3040EZ* 3" x 4" 100 PSI
ADD400* RDD400EZ* 4" 100 PSI
- RDD600EZ* 6" 75 PSI

* Parts are produced as a welded fabrication
