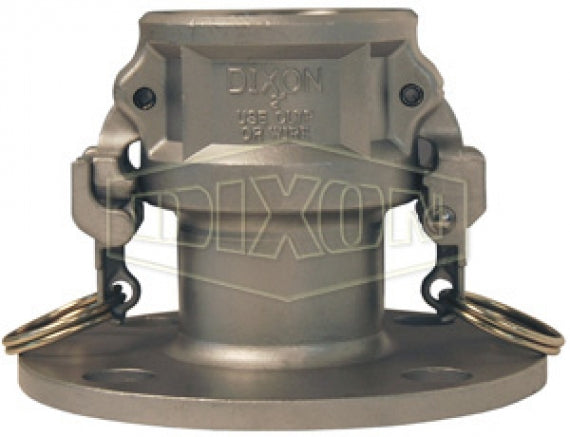

RDL150EZ by Dixon Valve | EZ Boss-Lock Cam & Groove Flange Adapter | 1-1/2" Coupler x 150# Flange | 11/16" Flange Thickness | 316 Stainless Steel

RDL150EZ by Dixon Valve | EZ Boss-Lock Cam & Groove Flange Adapter | 1-1/2" Coupler x 150# Flange | 11/16" Flange Thickness | 316 Stainless Steel

Save $43.56 Save $43.56
$392.06
$392.06 - $392.06
$392.06
$348.50
$348.50 - $348.50
$348.50

Dixon Valve
EZ Boss-Lock Cam & Groove Flange Adapter | Coupler x 150# Flange

Designed for use with liquids.
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: RDL150EZ Dixon
Brand: EZ Boss-Lock
Shape (Orientation): Straight
Ends Configuration: 1-1/2in 150# Flange, 1-1/2in Female Cam & Groove
Material(s): 316 Stainless Steel
Seal Material(s): Nitrile
Features:
  • Flange has raised face.
  • Flanges are designed to mate with #150 flange.
  • Nitrile rubber gasket standard.
  • No more fumbling with clamps, wire, clips or pins, just close the handles and the locking mechanism is engaged. No sliding pins to jam or pop open.
  • Extremely easy to open, the release lever is under your thumb when you want to open the fitting, ergonomic.
  • Resistant to accidental disconnection when being dragged. The release lever opens in the direction opposite to the cam arm, so movements that tend to open the release lever also tend to close the cam arm.
  • Rotating action helps keep the locking devise free of debris.
  • Designed to protect critical parts from impact and to withstand rugged use.
Safety Notes:
  • If the rotating lever is not flush with the handle, it is not properly engaged.
  • Under no circumstances should cam and groove couplings be used for compressed air or steam service!
  • Under no circumstances should the EZ Boss-Lock cam arms be used on any fitting not specifically designed for their use.
  • Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F / 21°C with a standard seal installed. For use at elevated temperature or other unusual operating conditions, consult Dixon.
How It Works:
  • To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down.
  • Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.
Specifications:
  • Produced to interchange with all product produced to Commercial Item Description A-A-59326D.
316 Stainless Steel
Part Number		 Size Flange Thickness Max. Operating Pressure
RDL100EZ* 1" 9/16" 250 PSI
RDL150EZ* 1-1/2" 11/16" 250 PSI
RDL200EZ* 2" 7/16" 250 PSI
RDL300EZ* 3" 7/16" 125 PSI
RDL400EZ* 4" 7/16" 100 PSI
RDL600EZ* 6" 1" 75 PSI

* Part is produced as a welded fabrication
