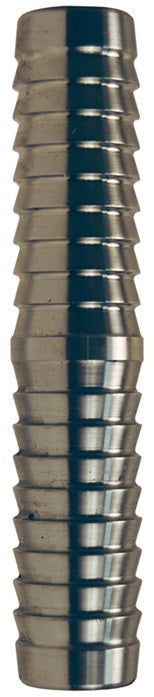

RDM36 by Dixon Valve | Hose Mender/Splicer | 3" Hose ID x 3" Hose ID | 316 Stainless Steel

RDM36 by Dixon Valve | Hose Mender/Splicer | 3" Hose ID x 3" Hose ID | 316 Stainless Steel

Save $79.41 Save $79.41
$198.53
$198.53 - $198.53
$198.53
$119.12
$119.12 - $119.12
$119.12

Dixon Valve
Hose Mender/Splicer | Hose Barb x Hose Barb
Specifications for Variant SKU: RDM36 Dixon
Shape (Orientation): Straight
Ends Configuration: 3in Hose Barb, 3in Hose Barb, Some Ends Match
Material(s): 316 Stainless Steel
Safety Notes:
  • Menders are not for compressible products such as air, nitrogen or steam.
  • The working pressure may vary with the construction of the hose, the type of clamping system used and the application.
  • In accordance with the R.M.A. bulletin for oil suction and discharge hose, a coupled length of hose in any size, should be tested to 1-1/2 times the working pressure and held for fifteen minutes without leaking or coupling movement. For additional information and detailed instructions on testing procedures, see the Rubber Manufacturers Association (R.M.A.) handbook.
Zinc Plated Steel
Part Number		 316 Stainless Steel
Part Number		 Size
DMA RDMA 1/4"
DMB RDMB 3/8"
DM1 RDM1 1/2"
DM5 - 5/8"
DM6 RDM6 3/4"
DM11 RDM11 1"
DM16 RDM16 1-1/4"
DM18 - 1-3/8"
DM21 RDM21 1-1/2"
DMXL21* - 1-1/2"
DM26 RDM26 2"
DMXL26* - 2"
DM31 - 2-1/2"
DM36 RDM36 3"
DM46 RDM46 4"
DM51 - 5"
DM66 - 6"
DM86 - 8"
DM100 - 10"
DM120 - 12"

* XL series has extra long shank
