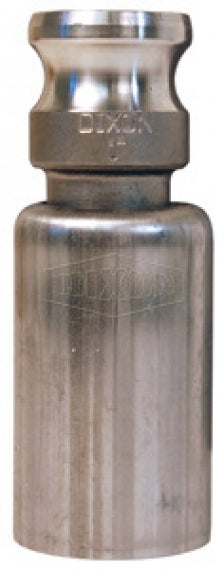

RE100-1770 by Dixon Valve | Boss-Lock Cam & Groove Coupler with Swaged Ferrule | Type E | 1" Size | Hose OD Range: from 1-36/64" to 1-44/64" | 316 Stainless Steel

RE100-1770 by Dixon Valve | Boss-Lock Cam & Groove Coupler with Swaged Ferrule | Type E | 1" Size | Hose OD Range: from 1-36/64" to 1-44/64" | 316 Stainless Steel

Save $37.42 Save $37.42
$93.55
$93.55 - $93.55
$93.55
$56.13
$56.13 - $56.13
$56.13

Dixon Valve
Boss-Lock Cam & Groove Fitting | Type E | Adapter x Shank with Swaged Ferrule

Developed specifically for chemical transport hoses having Cross-linked Polyethylene (XLPE) or Ultra High Molecular Weight Polyethylene (UHMW) tubes.
Specifications for Variant SKU: RE100-1770 Dixon
Brand: Boss-Lock
Shape (Orientation): Straight
Cam Type: Type E
Ends Configuration: 1in Male Cam & Groove, 1in Hose Barb
Material(s): 316 Stainless Steel
Features:
  • Provides a permanently attached cam and groove fitting when superior coupling retention is required.
Safety Notes:
  • Under no circumstances should cam and groove couplings be used for compressed air or steam service!.
  • Dixon stems and ferrules are specifically designed to be used together as a coupling system.
  • Due to differences in dimensions and tolerances for safety reasons, do not use other manufacturer's stems or ferrules with Dixon products.
  • Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F (21°C) with a standard Nitrile Rubber Seal installed. For use at elevated temperature or other unusual operating conditions, consult Dixon.
  • Contact Dixon for swage recommendations.
  • Special equipment is required for installation
How It Works:
  • To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down.
  • Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.
Specifications:
  • Produced to interchange with all product produced to Commercial Item Description A-A-59326D.
316 Stainless Steel
Part Number		 Size Hose OD Range Max. Operating
Pressure
from to
RE075-1370 3/4" 1-6/64" 1-22/64" 250 PSI
RE100-1620 1" 1-29/64" 1-35/64" 250 PSI
RE100-1770 1" 1-36/64" 1-44/64" 250 PSI
