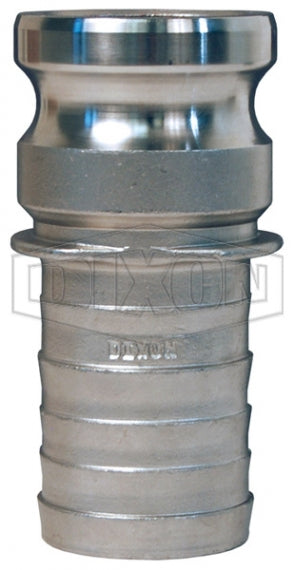

RE300NO by Dixon Valve | Boss-Lock Cam & Groove Adapter | Type E | 3" Adapter x 3" Notched Hose Shank | 316 Stainless Steel

RE300NO by Dixon Valve | Boss-Lock Cam & Groove Adapter | Type E | 3" Adapter x 3" Notched Hose Shank | 316 Stainless Steel

Save $57.51 Save $57.51
$143.78
$143.78 - $143.78
$143.78
$86.27
$86.27 - $86.27
$86.27

Dixon Valve
Boss-Lock Cam & Groove Fitting | Type E | Adapter x Notched Hose Shank
Specifications for Variant SKU: RE300NO Dixon
Brand: Boss-Lock
Shape (Orientation): Straight
Cam Type: Type E
Ends Configuration: 3in Male Cam & Groove, 3in Hose Barb
Material(s): 316 Stainless Steel
Features:
  • The largest advantage of the notched design is that the coupling can be removed from a damaged hose by cutting away the ferrule, without necessarily damaging the fitting. After inspection of the fitting to determine its suitability for reuse, it can be reinstalled into another hose by using a new ferrule.
Safety Notes:
  • Use with Notched Ferrules.
  • Under no circumstances should cam and groove couplings be used for compressed air or steam service!.
  • Dixon stems and ferrules are specifically designed to be used together as a coupling system.
  • Due to differences in dimensions and tolerances for safety reasons, do not use other manufacturer's stems or ferrules with Dixon products.
  • Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F (21°C) with a standard Nitrile Rubber Seal installed. For use at elevated temperature or other unusual operating conditions, consult Dixon.
  • Contact Dixon for swage or crimp recommendations.
  • You must purchase a fitting and the matching ferrule to create an assembly.
How It Works:
  • To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down.
  • Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.
Specifications:
  • Produced to interchange with all product produced to Commercial Item Description A-A-59326D.
316 Stainless Steel
Part Number		 Size Max. Operating
Pressure
RE150NO 1-1/2" 250 PSI
RE200NO 2" 250 PSI
RE300NO 3" 125 PSI
RE400NO 4" 100 PSI
