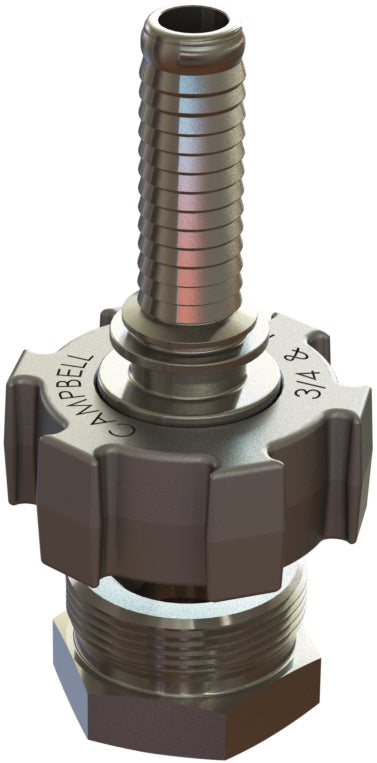

RGJF-2 by Campbell Fittings | Ground Joint Coupling | Female Set | with low-profile nut | 1/2" Female NPT Thread x 1/2" Hose Shank | Ductile Iron/Steel

RGJF-2 by Campbell Fittings | Ground Joint Coupling | Female Set | with low-profile nut | 1/2" Female NPT Thread x 1/2" Hose Shank | Ductile Iron/Steel

Save $11.51 Save $11.51
$45.29
$45.29 - $45.29
$45.29
$33.78
$33.78 - $33.78
$33.78

by Campbell
VITON® Seal Ground Joint Couplings:Steel/Ductile Iron Female Set (with low-profile nut)
Specifications for Variant SKU: RGJF-2 Campbell Fittings
Shape (Orientation): Straight
Ends Configuration: 1/2in Female NPT, 1/2in Hose Barb
Material(s): Ductile Iron, Steel
Recommended Use:
  • High-pressure steam and air
Recommended Hose Attachments:
  • Interlocking Ferrules
  • Interlocking U-bolt clamps
Features and Benefits:
  • Viton Seal Coupling pass 1000 hour MIL-H-29210 steam test.
  • Eliminates leaks with nut hand tightened.
  • Viton seal (formulated by DuPont for high pressure steam and air applications) is protected inside machined stem groove and by swivel nut, extending working life.
  • Spud does not contain plastic seat, extending working life.
  • Interchangeable with old-style domestic ground joint couplings.
  • Machined hose ends with smooth end detail to reduce potential failure due to abrasion - grips, seals, and protects hose.
  • Interlock groove locks ferrule into place for superior holding power.
Part Number Hose Size
RGJF-2 1/2"
RGJF-3 3/4"
RGJF-4 1"
RGJF-5 1-1/4"
RGJF-6 1-1/2"
RGJF-8 2"
RGJF-10 2-1/2"
RGJF-12 3"
RGJF-16 4"
