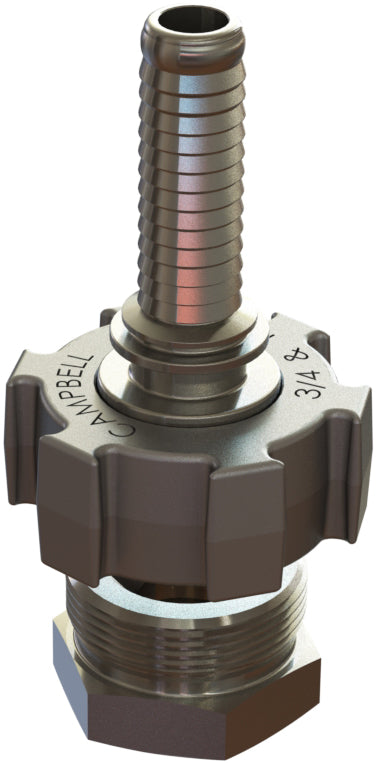

RGJFSS-3 by Campbell Fittings | Ground Joint Coupling | Female Set | with low-profile nut | 3/4" Female NPT Thread x 3/4" Hose Shank | Viton® Seal | 316 Stainless Steel

RGJFSS-3 by Campbell Fittings | Ground Joint Coupling | Female Set | with low-profile nut | 3/4" Female NPT Thread x 3/4" Hose Shank | Viton® Seal | 316 Stainless Steel

Save $103.53 Save $103.53
$258.82
$258.82 - $258.82
$258.82
$155.29
$155.29 - $155.29
$155.29

by Campbell
VITON® Seal Ground Joint Couplings:316 Stainless Steel Female Set (with low-profile nut)
Specifications for Variant SKU: RGJFSS-3 Campbell Fittings
Shape (Orientation): Straight
Ends Configuration: 3/4in Female NPT, 3/4in Hose Barb
Material(s): 316 Stainless Steel
Seal Material(s): Viton
Recommended Use:
  • High-pressure steam and air
Recommended Hose Attachments:
  • Interlocking Ferrules
  • Interlocking U-bolt clamps
Features and Benefits:
  • Viton Seal Coupling pass 1000 hour MIL-H-29210 steam test.
  • Eliminates leaks with nut hand tightened.
  • Viton seal (formulated by DuPont for high pressure steam and air applications) is protected inside machined stem groove and by swivel nut, extending working life.
  • Spud does not contain plastic seat, extending working life.
  • Interchangeable with old-style domestic ground joint couplings.
  • Machined hose ends with smooth end detail to reduce potential failure due to abrasion - grips, seals, and protects hose.
  • Interlock groove locks ferrule into place for superior holding power.
Part Number Hose Size
RGJFSS-2 1/2"
RGJFSS-3 3/4"
RGJFSS-4 1"

Campbell Fittings

Campbell Fittings offers a range of hose fittings, couplings, ferrules, and sleeves, for applications across a variety of industries.
