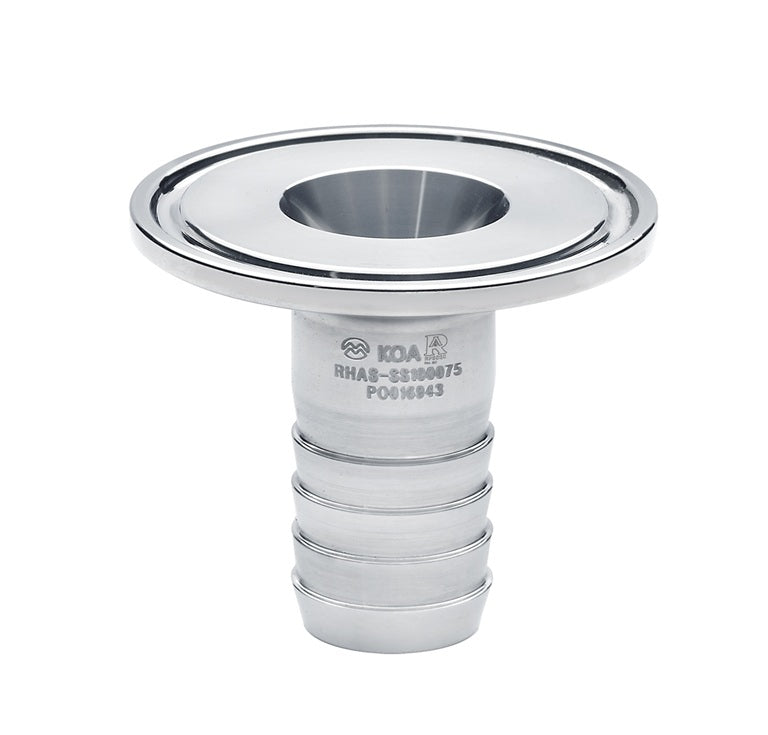

RHAS-SS150 by Kuriyama | RHAS-SS Series | Sanitary Rubber Hose Fitting | 1-1/2" Tri-Clamp End x 1-1/2" Hose Barb | Short | 316 Stainless Steel

RHAS-SS150 by Kuriyama | RHAS-SS Series | Sanitary Rubber Hose Fitting | 1-1/2" Tri-Clamp End x 1-1/2" Hose Barb | Short | 316 Stainless Steel

Save $11.45 Save $11.45
$52.21
$52.21 - $52.21
$52.21
$40.76
$40.76 - $40.76
$40.76

Kuriyama of America Inc.
Sanitary Tri-Clamp Rubber Hose Fitting | Tri-Clamp x Short Hose Shank
Specifications for Variant SKU: RHAS-SS150 Kuriyama
Series: RHAS-SS Series
Shape (Orientation): Straight
Material(s): 316 Stainless Steel
Special Properties: Food Grade, Short

What are the Features?

  • Durable 316 stainless steel.
  • Smooth 32 Ra food contact surface finish.
  • Certified to 3-A RPSCQC 62-02 for sanitary assemblies.
  • Uses SPHDS, DPHDS or DBS series clamps.
  • Uses Tri-Clamp gaskets.

The Kuriyama Sanitary Advantage:

  • Material Safety - Every KOA Sanitary Fitting is made from 316L stainless steel, and can be traced back to its original Material Test Report (MTR) by the heat number imprinted on each individual fitting.
  • Food Safety - Sanitary fittings are manufactured with a smooth (32Ra) polish on food contact surfaces, and without any pockets or tight radii where food could become trapped. Additionally, KOA Sanitary Fittings are designed with Finepoint™ barb ends, virtually eliminating areas where food or other transferred materials can become trapped at the fitting to hose transition area.
  • Quality Control - In addition to the quality assurance inspections performed during manufacturing, KOA Sanitary Fittings are independently lab tested after their manufacture to ensure conformance of their physical properties using an Olympus Innov-X Alloys and Metals Analyzer.
  • Cleaning & Packaging - After manufacturing, KOA Sanitary Fittings undergo an ultrasonic cleaning process, and are individually bubble and shrink-wrapped to ensure they arrive in pristine condition.
Part Number Fitting End Size
(in)		 Hose Shank Size
(in)		 PSI Rating
at 70°F		 Weight
Each
(lbs)
RHAS-SS100038 1" 3/8" 690 PSI 0.18 lbs
RHAS-SS100050 1" 1/2" 690 PSI 0.20 lbs
RHAS-SS100075 1" 3/4" 690 PSI 0.22 lbs
RHAS-SS100 1" 1" 690 PSI 0.24 lbs
RHAS-SS150050 1-1/2" 1/2" 690 PSI 0.18 lbs
RHAS-SS150062 1-1/2" 5/8" 690 PSI 0.22 lbs
RHAS-SS150075 1-1/2" 3/4" 690 PSI 0.18 lbs
RHAS-SS150100 1-1/2" 1" 690 PSI 0.22 lbs
RHAS-SS150 1-1/2" 1-1/2" 690 PSI 0.26 lbs
RHAS-SS200150 2" 1-1/2" 690 PSI 0.37 lbs
RHAS-SS200 2" 2" 690 PSI 0.40 lbs
RHAS-SS250 2-1/2" 2-1/2" 435 PSI 0.75 lbs
RHAS-SS300 3" 3" 435 PSI 1.12 lbs
RHAS-SS400 4" 4" 435 PSI 1.94 lbs
RHAS-SS600 6" 6" 435 PSI 3.25 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
