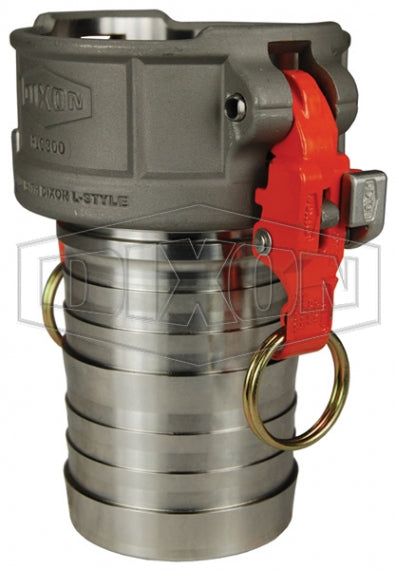

RLC200EZ by Dixon Valve | EZ Boss-Lock Vent-Lock® Safety Cam & Groove Coupler | Type C | 2" Coupler x 2" Hose Shank (Drop Shank) | 316 Stainless Steel

RLC200EZ by Dixon Valve | EZ Boss-Lock Vent-Lock® Safety Cam & Groove Coupler | Type C | 2" Coupler x 2" Hose Shank (Drop Shank) | 316 Stainless Steel

Save $102.63 Save $102.63
$256.58
$256.58 - $256.58
$256.58
$153.95
$153.95 - $153.95
$153.95

Dixon Valve
Vent-Lock® Safety Cam & Groove | Type C | Coupler x Hose Shank

Transfer of fluids and solids, with a safer disconnection.
Specifications for Variant SKU: RLC200EZ Dixon
Brand: Vent-Lock, EZ Boss-Lock, King Crimp
Shape (Orientation): Straight
Cam Type: Type C
Ends Configuration: 2in Female Cam & Groove, 2in Hose Barb
Material(s): 316 Stainless Steel
Seal Material(s): Buna-N/Nitrile Rubber
Features:
  • Safety release cam & groove couplings permit the release of static pressure when disconnecting hose assemblies.
  • Venting system protects operator from being sprayed with hazardous or non-hazardous fluids or solids.
  • Does not interchange with standard cam & groove products; use only with Dixon L-style fittings.
  • Safety orange cam arms.
Specifications:
  • Rated to 250 PSI; recommendation based on the use of mating Dixon® L-style fittings at ambient temperature 70°F (21°C) with standard nitrile rubber seal installed.
    • 1", 1-1/2" and 2" sizes have a maximum working pressure of 250 PSI.
    • 3" maximum working pressure 150 PSI with King Crimp® ferrules, crimp sleeves, and bands at 125 PSI.
    • 4" maximum working pressure 150 PSI with King Crimp ferrules, crimp sleeves, and bands at 100 PSI.
316 Stainless Steel
Part Number		 Aluminum
Part Number		 Size
RLC100EZ - 1"
RLC150EZ - 1-1/2"
RLC200EZ* - 2"
RLC300EZ* - 3"
- ALC400EZ* 4"

* Has drop shank.

Pressure rating recommendation is based on the use of mating Vent-Lock™ L-style fittings at ambient temperature 70°F (21°C) with standard Nitrile Rubber seal installed, for use at elevated temperature or other unusual operating conditions, consult Dixon.

Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
