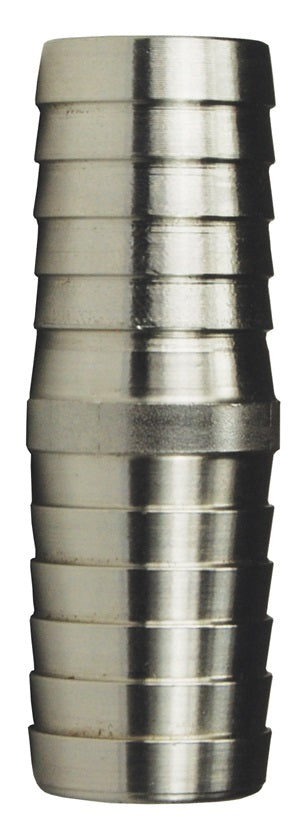

RM2 by Dixon Valve | Short Shank Mender/Splicer | 1/4" Hose ID x 1/4" Hose ID | 2-1/32" Length | 316 Stainless Steel

Name: RM2 by Dixon Valve | Short Shank Mender/Splicer | 1/4" Hose ID x 1/4" Hose ID | 2-1/32" Length | 316 Stainless Steel
Brand: Dixon
SKU: RM2 Dixon
Price: 11.97 USD
Availability: InStock

Save $7.98

$19.95

$19.95 - $19.95

$19.95

$11.97

$11.97 - $11.97

$11.97

Dixon Valve
Short Shank Mender/Splicer | Hose Barb x Hose Barb

Specifications for Variant SKU: RM2 Dixon
Shape (Orientation):	Straight
Ends Configuration:	1/4in Hose Barb, 1/4in Hose Barb, Some Ends Match
Material(s):	316 Stainless Steel
Special Properties:	Short

Safety Notes:
Menders are not for compressible products such as air, nitrogen or steam. The working pressure may vary with the construction of the hose, the type of clamping system used and the application. In accordance with the R.M.A. bulletin for oil suction and discharge hose, a coupled length of hose in any size, should be tested to 1-1/2 times the working pressure and held for fifteen minutes without leaking or coupling movement. For additional information and detailed instructions on testing procedures, see the Rubber Manufacturers Association (R.M.A.) handbook.

316 Stainless Steel Part Number	Previous Part Number	Size	Length
RM2	1780404SS	1/4"	2-1/32"
RM3	1780606SS	3/8"	2-1/16"
RM4	1780808SS	1/2"	2-1/16"
RM6	1781212SS	3/4"	2-1/2"

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
