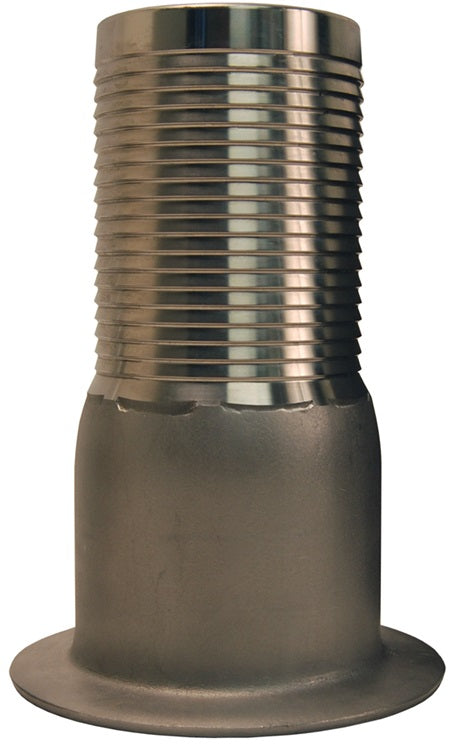

RN10 by Dixon Valve | King Turned Back Hose Nipple | for Floating Flange | 1" Flange x 1" Hose ID | 316 Stainless Steel

RN10 by Dixon Valve | King Turned Back Hose Nipple | for Floating Flange | 1" Flange x 1" Hose ID | 316 Stainless Steel

Save $8.91 Save $8.91
$117.91
$117.91 - $117.91
$117.91
$109.00
$109.00 - $109.00
$109.00

Dixon Valve
King Turned Back Hose Nipple for Floating Flange | Flange x Hose Barb

A turned back nipple, when used in a floating flange assembly, allows the flange to be aligned without stressing (twisting) the hose.

For use with Lap Joint flanges.
Specifications for Variant SKU: RN10 Dixon
Shape (Orientation): Straight
Material(s): 316 Stainless Steel
Features:
  • Turned back nipples generally increases the hose's service life by eliminating a common cause of premature hose failure, and allows the flange to be aligned without stressing (twisting) the hose.
Plated Carbon Steel
Part Number		 316 Stainless Steel
Part Number		 Size
N10 RN10 1"
N15 - 1-1/4"
N20 RN20 1-1/2"
N25 RN25 2"
N30 RN30 2-1/2"
N35 RN35 3"
N40 RN40 4"
N60 RN60 6"
N80 RN80 8"
N100 - 10"
N120 - 12"
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
