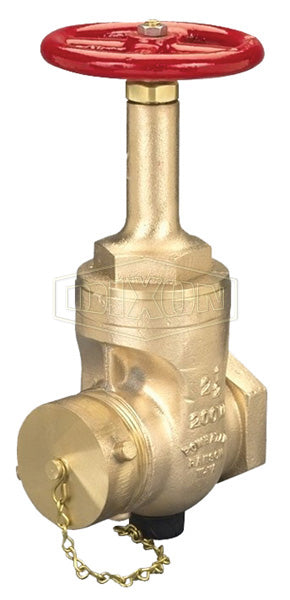

RWDGV250F Dixon Rising Stem Wedge Disc Gate Valve - 2-1/2" Female NPT Inlet x 2-1/2" Male NST(NH) Outlet - 200 PSI

RWDGV250F Dixon Rising Stem Wedge Disc Gate Valve - 2-1/2" Female NPT Inlet x 2-1/2" Male NST(NH) Outlet - 200 PSI

Save $77.07 Save $77.07
$785.42
$785.42 - $785.42
$785.42
$708.35
$708.35 - $708.35
$708.35

Dixon Fire Fittings
Rising Stem Wedge Disc Gate Valves - Cast Brass
Specifications for Variant SKU: RWDGV250F Dixon
Shape (Orientation): Straight
Ends Configuration: 2-1/2in Female NPT, 2-1/2in Male NST
Material(s): Brass
Features:
  • Solid wedge disc with tapered seats.
  • Red handwheel, with brass cap and chain.
  • Note: ONLY 3" is Underwriters Listed.
  • Not recommended for wet standpipe systems. Use AV250 for wet standpipe systems.
Size A B Closed C D Closed D Open
2-1/2" 6-1/2" 11" 2-1/2" 13-1/2" 16-1/4"
3" x 2-1/2 6-3/16" 11" 2-1/2" 13-1/2" 16-1/4"
Part Number Female NPT Inlet Male NST (NH) Outlet U/L Working Pressure
at 70 deg. F		 Weight
(Lbs.)
RWDGV250F 2-1/2" 2-1/2" No 200 PSI 19.0000
RWDGV3025F 3" 2-1/2" Yes 300 PSI 23.8000
