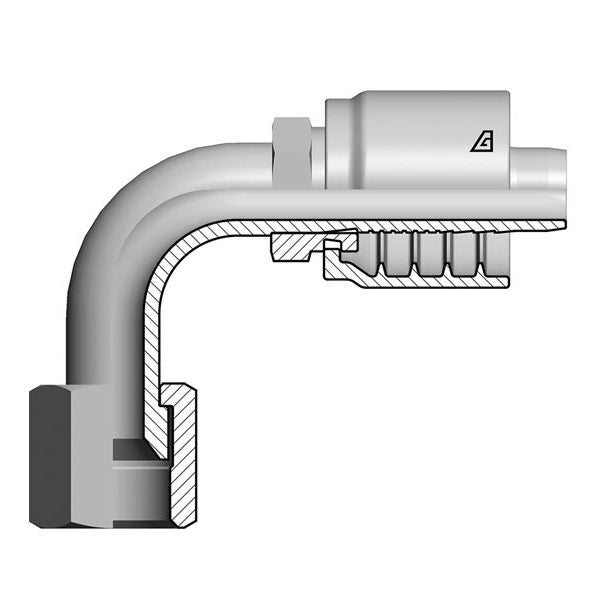

S-1010-FJ9M Alfagomma by Kuriyama | S Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | with Stem Hexagon | 90° Elbow | Medium Drop | -10 Female 37° JIC Swivel x -10 Hose ID | Steel

S-1010-FJ9M Alfagomma by Kuriyama | S Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | with Stem Hexagon | 90° Elbow | Medium Drop | -10 Female 37° JIC Swivel x -10 Hose ID | Steel

Save $13.63 Save $13.63
$47.70
$47.70 - $47.70
$47.70
$34.07
$34.07 - $34.07
$34.07

Kuriyama of America Inc.
Alfagomma | S Series | One-Piece AlfaCrimp Fitting | with Stem Hexagon | 90° Elbow | Medium Drop | Female 37° JIC Swivel x Hose Barb
Specifications for Variant SKU: S-1010-FJ9M Kuriyama
Brand: Alfabiotech Evolution
Series: S Series
Shape (Orientation): 90 Degree
Ends Configuration: 5/8in Female JIC, 5/8in Hose Barb
Material(s): Steel
Special Properties: Swivel, Medium Drop
Compatible with the following Series: E3K Series  |   E4K Series  |   E5K Series  |   E5.5K Series  |   E6K Series  |   E5KST Series  |   E6KST Series
Part Number Hose ID Size F Thread C Cut-Off
Factor		 D Drop Hex Dia. Weight
Dash
Size		 in mm Dash
Size		 Size
(in) - TPI		 mm in CH
mm		 CH1
mm		 lbs/each
S-0606-FJ9M -06 3/8" 9.5mm -06 9/16-18 43.0mm 38mm 17mm 19mm 0.29 lbs
S-0608-FJ9M -06 3/8" 9.5mm -08 3/4-16 39.5mm 41mm - 25mm 0.31 lbs
S-0808-FJ9M -08 1/2" 12.7mm -08 3/4-16 50.0mm 41mm 19mm 22mm 0.38 lbs
S-0810-FJ9M -08 1/2" 12.7mm -10 7/8-14 43.3mm 47mm - 27mm 0.44 lbs
S-0812-FJ9M -08 1/2" 12.7mm -12 1-1/16-20 42.8mm 58mm - 32mm 0.49 lbs
S-1010-FJ9M -10 5/8" 15.9mm -10 7/8-14 50.0mm 47mm 24mm 27mm 0.64 lbs
S-1012-FJ9M -10 5/8" 15.9mm -10 1-1/16-20 47.9mm 58mm - 32mm 0.66 lbs
S-1212-FJ9M -12 3/4" 19.1mm -12 1-1/16-12 54.0mm 58mm 27mm 32mm 0.95 lbs
S-1214-FJ9M -12 3/4" 19.1mm -14 1-3/16-12 52.6mm 56mm - 36mm 0.95 lbs
S-1216-FJ9M -12 3/4" 19.1mm -16 1-5/16-12 52.6mm 72mm - 38mm 1.03 lbs
S-1616-FJ9M -16 1" 25.4mm -16 1-5/16-12 72.0mm 71mm 36mm 41mm 1.73 lbs
S-1620-FJ9M -16 1" 25.4mm -20 1-5/8-12 72.6mm 78mm - 50mm 1.91 lbs
S-2020-FJ9M -20 1-1/4" 31.8mm -20 1-5/8-12 84.0mm 78mm - 50mm 2.45 lbs
S-2424-FJ9M -24 1-1/2" 38.1mm -24 1-7/8-12 104.0mm 92mm - 55mm 3.64 lbs
S-3232-FJ9M -32 2" 50.8mm -32 2-1/2-12 147.5mm 135mm - 70mm 4.91 lbs
