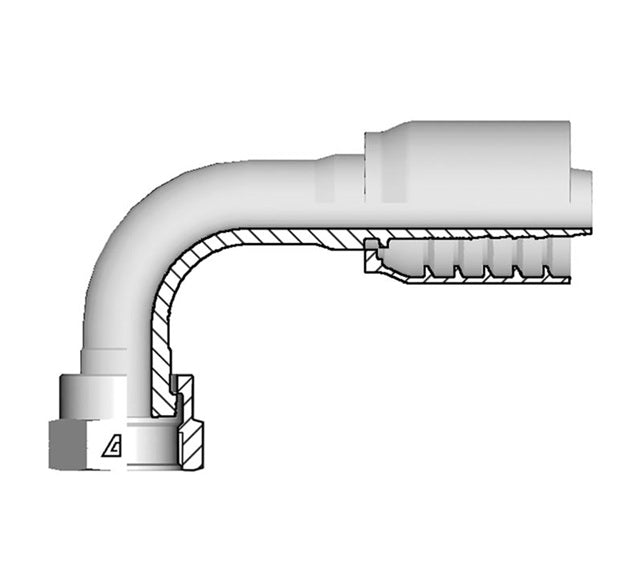

S-1010-FO9M Alfagomma by Kuriyama | S Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | 90° Elbow | Medium Drop | -10 Female ORFS x -10 Hose ID | Steel

S-1010-FO9M Alfagomma by Kuriyama | S Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | 90° Elbow | Medium Drop | -10 Female ORFS x -10 Hose ID | Steel

Save $13.96 Save $13.96
$48.86
$48.86 - $48.86
$48.86
$34.90
$34.90 - $34.90
$34.90

Kuriyama of America Inc.
Alfagomma | S Series | One-Piece AlfaCrimp Fitting | 90° Elbow | Medium Drop | Female ORFS (O-Ring Face Seal) x Hose Barb
Specifications for Variant SKU: S-1010-FO9M Kuriyama
Brand: Alfabiotech Evolution
Series: S Series
Shape (Orientation): 90 Degree
Ends Configuration: 5/8in Female O-Ring Face Seal, 5/8in Hose Barb
Material(s): Steel
Special Properties: Medium Drop
Compatible with the following Series: E3K Series  |   E4K Series  |   E5K Series  |   E5.5K Series  |   E6K Series  |   E5KST Series  |   E6KST Series
Part Number Hose ID Size F Thread C Cut-Off
Factor		 D
Drop		 Hex Dia. Weight
Dash
Size		 in mm Dash
Size		 Size
(in) - TPI		 mm mm CH1
mm		 lbs/each
S-0606-FO9M -06 3/8" 9.5mm -06 11/16-16 43mm 38mm 22mm 0.27 lbs
S-0808-FO9M -08 1/2" 12.7mm -08 13/16-16 35mm 42mm 24mm 0.33 lbs
S-1010-FO9M -10 5/8" 15.9mm -10 1-14 56mm 44mm 30mm 0.68 lbs
S-1212-FO9M -12 3/4" 19.1mm -12 1-3/16-12 63mm 58mm 36mm 1.10 lbs
S-1216-FO9M -12 3/4" 19.1mm -16 1-7/16-12 70mm 58mm 41mm 1.57 lbs
S-1616-FO9M -16 1" 25.4mm -16 1-7/16-12 80mm 66mm 41mm 1.58 lbs
S-2020-FO9M -20 1-1/4" 31.8mm -20 1-11/16-12 101mm 81mm 50mm 2.50 lbs
