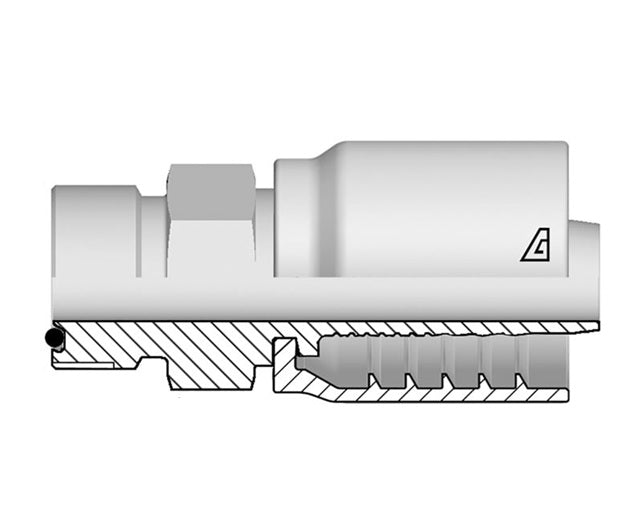

S-1010-MOFS Alfagomma by Kuriyama | S Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | -10 Male ORFS x -10 Hose ID | Steel

S-1010-MOFS Alfagomma by Kuriyama | S Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | -10 Male ORFS x -10 Hose ID | Steel

Save $12.13 Save $12.13
$42.45
$42.45 - $42.45
$42.45
$30.32
$30.32 - $30.32
$30.32

Kuriyama of America Inc.
Alfagomma | S Series | One-Piece AlfaCrimp Fitting | Male ORFS (O-Ring Face Seal) x Hose Barb
Specifications for Variant SKU: S-1010-MOFS Kuriyama
Brand: Alfabiotech Evolution
Series: S Series
Shape (Orientation): Straight
Ends Configuration: 5/8in Male O-Ring Face Seal, 5/8in Hose Barb
Material(s): Steel
Compatible with the following Series: E3K Series  |   E4K Series  |   E5K Series  |   E5.5K Series  |   E6K Series  |   E5KST Series  |   E6KST Series
Part Number Hose ID Size F Thread C Cut-Off
Factor		 Hex Dia. Weight
Dash
Size		 in mm Dash
Size		 Size
(in) - TPI		 mm CH
mm		 lbs/each
S-0606-MOFS -06 3/8" 9.5mm -06 11/16-16 25.0mm 19mm 0.19 lbs
S-0808-MOFS -08 1/2" 12.7mm -08 13/16-16 27.1mm 22mm 0.26 lbs
S-1010-MOFS -10 5/8" 15.9mm -10 1-14 31.3mm 27mm 0.44 lbs
S-1212-MOFS -12 3/4" 19.0mm -12 1-3/16-12 36.1mm 32mm 0.69 lbs
S-1616-MOFS -16 1" 25.4mm -16 1-7/16-12 40.6mm 38mm 1.11 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
