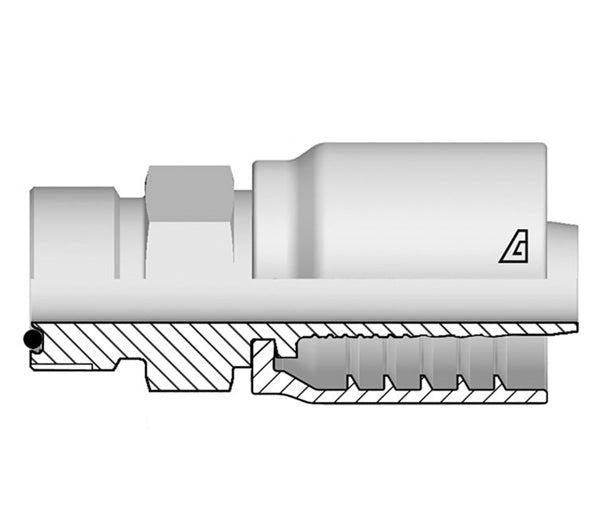

S-1026-MMSL Alfagomma by Kuriyama | S Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | DIN 3853 Light | M26 Metric Male 24° Seat x -10 Hose ID | Steel

Name: S-1026-MMSL Alfagomma by Kuriyama | S Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | DIN 3853 Light | M26 Metric Male 24° Seat x -10 Hose ID | Steel
Brand: Kuriyama
SKU: S-1026-MMSL Kuriyama
Price: 14.07 USD
Availability: InStock

Save $1.76

$15.83

$15.83 - $15.83

$15.83

$14.07

$14.07 - $14.07

$14.07

Kuriyama of America Inc.
Alfagomma | S Series | One-Piece AlfaCrimp Fitting | Metric Male 24° Seat x Hose Barb

DIN 3853 Light

Quantity

Specifications for Variant SKU: S-1026-MMSL Kuriyama
Brand:	Alfabiotech Evolution
Series:	S Series
Shape (Orientation):	Straight
Material(s):	Steel
Compatible with the following Series:	E3K Series \| E4K Series \| E5K Series \| E5.5K Series \| E6K Series \| E5KST Series \| E6KST Series


Part Number	Hose ID Size			F Thread		Tube OD	C Cut-Off Factor	Hex Dia. CH1	Weight
Part Number	Dash Size	in	mm	Dash Size	Size (in) - TPI	mm	mm	mm	lbs/each
S-0616-MMSL	-06	3/8"	9.5mm	-16	M16x1.5	10mm	23.3mm	17mm	0.18 lbs
S-0618-MMSL	-06	3/8"	9.5mm	-18	M18x1.5	12mm	24.3mm	19mm	0.19 lbs
S-0622-MMSL	-06	3/8"	9.5mm	-22	M22x1.5	15mm	25.3mm	22mm	0.22 lbs
S-0822-MMSL	-08	1/2"	12.7mm	-22	M22x1.5	15mm	26.1mm	22mm	0.26 lbs
S-0826-MMSL	-08	1/2"	12.7mm	-26	M26x1.5	18mm	27.1mm	27mm	0.33 lbs
S-1026-MMSL	-10	5/8"	15.9mm	-26	M26x1.5	18mm	27.1mm	27mm	0.37 lbs
S-1230-MMSL	-12	3/4"	19.0mm	-30	M30x2	22mm	31.6mm	32mm	0.50 lbs
S-1636-MMSL	-16	1"	25.4mm	-36	M36x2	28mm	34.4mm	26mm	0.85 lbs
S-2045-MMSL	-20	1-1/4"	31.8mm	-45	M45x2	35mm	40.0mm	46mm	1.29 lbs
