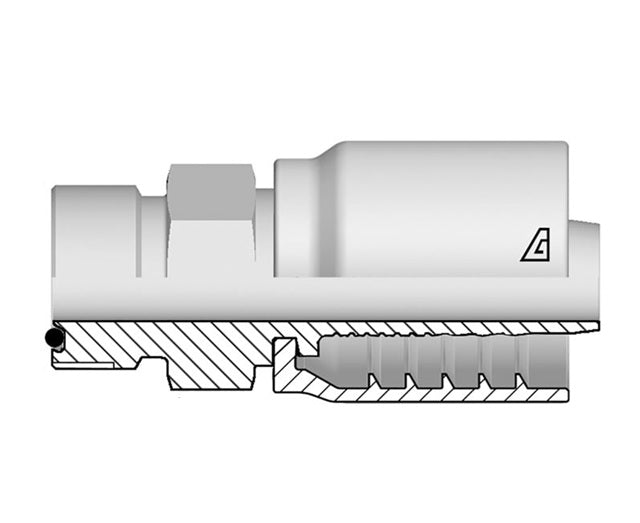

S-1212-MOFS Alfagomma by Kuriyama | S Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | -12 Male ORFS x -12 Hose ID | Steel

Name: S-1212-MOFS Alfagomma by Kuriyama | S Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | -12 Male ORFS x -12 Hose ID | Steel
Brand: Kuriyama
SKU: S-1212-MOFS Kuriyama
Price: 25.92 USD
Availability: InStock

Save $10.37

$36.29

$36.29 - $36.29

$36.29

$25.92

$25.92 - $25.92

$25.92

Kuriyama of America Inc.
Alfagomma | S Series | One-Piece AlfaCrimp Fitting | Male ORFS (O-Ring Face Seal) x Hose Barb

Specifications for Variant SKU: S-1212-MOFS Kuriyama
Brand:	Alfabiotech Evolution
Series:	S Series
Shape (Orientation):	Straight
Ends Configuration:	3/4in Male O-Ring Face Seal, 3/4in Hose Barb
Material(s):	Steel
Compatible with the following Series:	E3K Series \| E4K Series \| E5K Series \| E5.5K Series \| E6K Series \| E5KST Series \| E6KST Series


Part Number	Hose ID Size			F Thread		C Cut-Off Factor	Hex Dia.	Weight
Part Number	Dash Size	in	mm	Dash Size	Size (in) - TPI	mm	CH mm	lbs/each
S-0606-MOFS	-06	3/8"	9.5mm	-06	11/16-16	25.0mm	19mm	0.19 lbs
S-0808-MOFS	-08	1/2"	12.7mm	-08	13/16-16	27.1mm	22mm	0.26 lbs
S-1010-MOFS	-10	5/8"	15.9mm	-10	1-14	31.3mm	27mm	0.44 lbs
S-1212-MOFS	-12	3/4"	19.0mm	-12	1-3/16-12	36.1mm	32mm	0.69 lbs
S-1616-MOFS	-16	1"	25.4mm	-16	1-7/16-12	40.6mm	38mm	1.11 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
