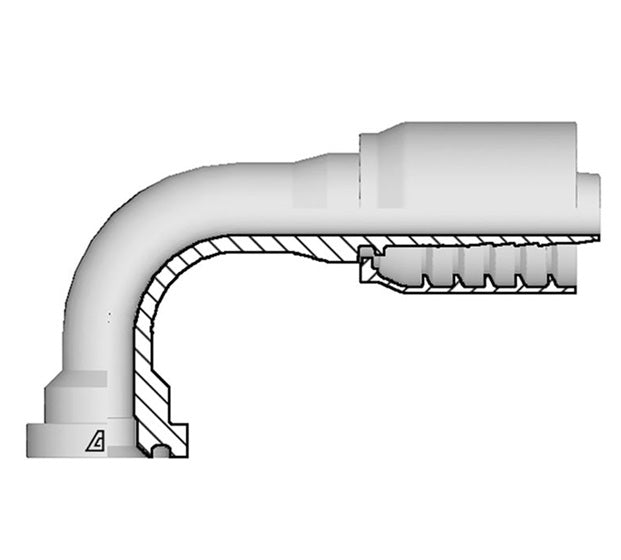

S-1216-C619 Alfagomma by Kuriyama | S Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | SAE J518 | 90° Elbow | -16 Code 61 Flange x -12 Hose ID | Steel

Save $23.61

$82.63

$82.63 - $82.63

$82.63

$59.02

$59.02 - $59.02

$59.02

Kuriyama of America Inc.
Alfagomma | S Series | One-Piece AlfaCrimp Fitting | 90° Elbow | Code 61 Flange x Hose Barb

SAE J518

Specifications for Variant SKU: S-1216-C619 Kuriyama
Brand:	Alfabiotech Evolution
Series:	S Series
Shape (Orientation):	90 Degree
Ends Configuration:	1in Code 61 Flange, 3/4in Hose Barb
Material(s):	Steel
Applicable Specs & Approvals:	SAE J518
Compatible with the following Series:	E3K Series \| E4K Series \| E5K Series \| E5.5K Series \| E6K Series \| E5KST Series \| E6KST Series


Part Number	Hose ID Size			Q Flange		C Cut-Off Factor	D Drop Factor	Flange Dash Size	Weight
Part Number	Dash Size	in	mm	in	mm	mm	mm	Flange Dash Size	lbs/each
S-0812-C619	-08	1/2"	12.7mm	1.50"	38.1mm	45.3mm	51.0mm	-12	0.52 lbs
S-1212-C619	-12	3/4"	19.0mm	1.50"	38.1mm	65.0mm	58.0mm	-12	1.00 lbs
S-1216-C619	-12	3/4"	19.0mm	1.75"	44.5mm	66.2mm	64.5mm	-16	1.11 lbs
S-1616-C619	-16	1"	25.4mm	1.75"	44.5mm	78.1mm	64.0mm	-16	1.47 lbs
S-1620-C619	-16	1"	25.4mm	2.00"	50.8mm	74.7mm	69.0mm	-20	1.55 lbs
S-2020-C619	-20	1-1/4"	31.8mm	2.00"	50.8mm	92.0mm	81.0mm	-20	2.19 lbs
S-2024-C619	-20	1-1/4"	31.8mm	2.38"	60.3mm	97.0mm	85.0mm	-24	3.60 lbs
S-2424-C619	-24	1-1/2"	38.1mm	2.38"	60.3mm	103.0mm	93.0mm	-24	3.35 lbs
S-2432-C619	-24	1-1/2"	38.1mm	2.81"	71.4mm	138.0mm	97.0mm	-32	4.75 lbs
S-3232-C619	-32	2"	50.8mm	2.81"	71.4mm	139.0mm	130.0mm	-32	4.95 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
