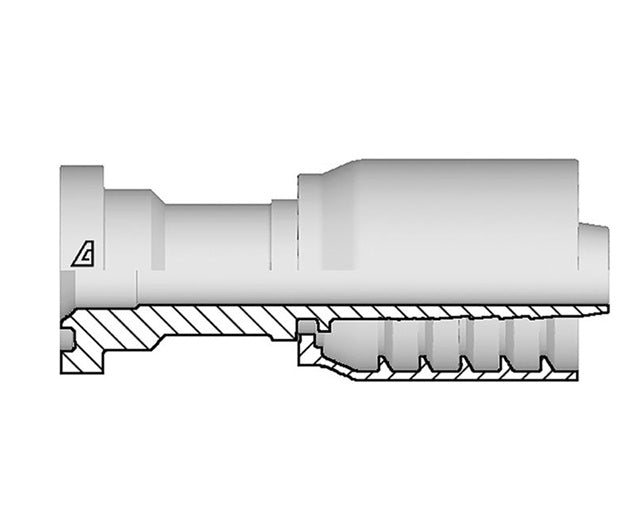

S-1216-C61S Alfagomma by Kuriyama | S Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | SAE J518 | -16 Code 61 Flange x -12 Hose ID | Steel

Save $14.77

$51.69

$51.69 - $51.69

$51.69

$36.92

$36.92 - $36.92

$36.92

Kuriyama of America Inc.
Alfagomma | S Series | One-Piece AlfaCrimp Fitting | Code 61 Flange x Hose Barb

SAE J518

Specifications for Variant SKU: S-1216-C61S Kuriyama
Brand:	Alfabiotech Evolution
Series:	S Series
Shape (Orientation):	Straight
Ends Configuration:	1in Code 61 Flange, 3/4in Hose Barb
Material(s):	Steel
Applicable Specs & Approvals:	SAE J518
Compatible with the following Series:	E3K Series \| E4K Series \| E5K Series \| E5.5K Series \| E6K Series \| E5KST Series \| E6KST Series


Part Number	Hose ID Size			Q Flange		C Cut-Off Factor	Flange Dash Size	Weight
Part Number	Dash Size	in	mm	in	mm	mm	Flange Dash Size	lbs/each
S-1212-C61S	-12	3/4"	19.0mm	1.50"	38.1mm	39.5mm	-12	0.70 lbs
S-1216-C61S	-12	3/4"	19.0mm	1.75"	44.5mm	52.0mm	-16	0.58 lbs
S-1616-C61S	-16	1"	25.4mm	1.75"	44.5mm	54.1mm	-16	1.19 lbs
S-1620-C61S	-16	1"	25.4mm	2.00"	50.8mm	56.6mm	-20	1.28 lbs
S-2020-C61S	-20	1-1/4"	31.8mm	2.00"	50.8mm	57.5mm	-20	1.70 lbs
S-2024-C61S	-20	1-1/4"	31.8mm	2.38"	60.3mm	61.5mm	-24	2.75 lbs
S-2420-C61S	-24	1-1/2"	38.1mm	2.00"	50.8mm	55.5mm	-20	3.10 lbs
S-2424-C61S	-24	1-1/2"	38.1mm	2.38"	60.3mm	62.5mm	-24	2.48 lbs
S-2432-C61S	-24	1-1/2"	38.1mm	2.81"	71.4mm	75.0mm	-32	5.05 lbs
S-3232-C61S	-32	2"	50.8mm	2.81"	71.4mm	79.2mm	-32	3.80 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
