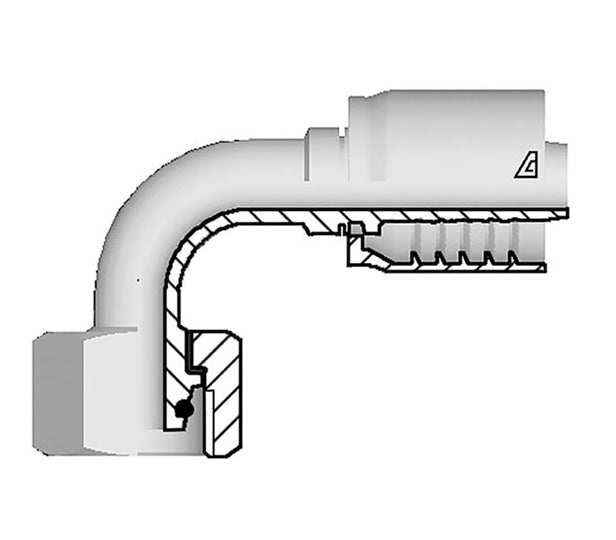

S-1236-FM9H Alfagomma by Kuriyama | S Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | 90° Elbow | DIN 3865 Heavy | M36 Female Metric Swivel O-Ring 24° Seat x -12 Hose ID | Steel

Save $22.58

$79.02

$79.02 - $79.02

$79.02

$56.44

$56.44 - $56.44

$56.44

Kuriyama of America Inc.
Alfagomma | S Series | One-Piece AlfaCrimp Fitting | 90° Elbow | Female Metric Swivel O-Ring 24° Seat x Hose Barb

DIN 3865 Heavy

Specifications for Variant SKU: S-1236-FM9H Kuriyama
Brand:	Alfabiotech Evolution
Series:	S Series
Shape (Orientation):	90 Degree
Material(s):	Steel
Compatible with the following Series:	E3K Series \| E4K Series \| E5K Series \| E5.5K Series \| E6K Series \| E5KST Series \| E6KST Series


Part Number	Hose ID Size			F Thread		C Cut-Off Factor	T Thickness	D Drop	Hex Dia. CH1	Weight
Part Number	Dash Size	in	mm	Dash Size	Size (in) - TPI	mm	mm	mm	mm	lbs/each
S-1236-FM9H	-12	3/4"	19.0mm	-36	M36x2.0	-	51.0mm	59.5mm	46mm	1.28 lbs
S-1636-FM9H	-16	1"	25.4mm	-36	M36x2.0	-	76.0mm	82.0mm	46mm	2.00 lbs
S-1642-FM9H	-16	1"	25.4mm	-42	M42x2.0	-	85.0mm	70.0mm	50mm	1.94 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
