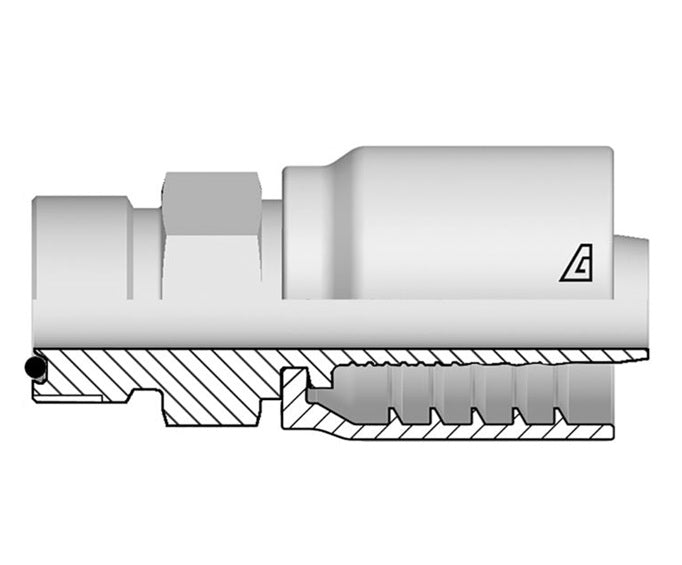

S-1236-MMSH Alfagomma by Kuriyama | S Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | DIN 3865 Heavy | M36 Metric Male 24° Seat x -12 Hose ID | Steel

S-1236-MMSH Alfagomma by Kuriyama | S Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | DIN 3865 Heavy | M36 Metric Male 24° Seat x -12 Hose ID | Steel

Save $11.48 Save $11.48
$40.17
$40.17 - $40.17
$40.17
$28.69
$28.69 - $28.69
$28.69

Kuriyama of America Inc.
Alfagomma | S Series | One-Piece AlfaCrimp Fitting | Metric Male 24° Seat x Hose Barb

DIN 3865 Heavy
Specifications for Variant SKU: S-1236-MMSH Kuriyama
Brand: Alfabiotech Evolution
Series: S Series
Shape (Orientation): Straight
Material(s): Steel
Compatible with the following Series: E3K Series  |   E4K Series  |   E5K Series  |   E5.5K Series  |   E6K Series  |   E5KST Series  |   E6KST Series
Part Number Hose ID Size F Thread Tube
OD		 C
Cut-Off
Factor		 Hex Dia.
CH1		 Weight
Dash
Size		 in mm Dash
Size		 Size
(in) - TPI		 mm mm mm lbs/each
S-1236-MMSH -12 3/4" 19.0mm -36 M36x2.0 28mm 37.6mm 36.0mm 0.74 lbs
S-1642-MMSH -16 1" 25.4mm -42 M42x2.0 30mm 51.0mm 50.0mm 1.19 lbs
S-2052-MMSH -20 1-1/4" 31.8mm -52 M52x2.0 38mm 48.0mm 55.0mm 1.98 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
