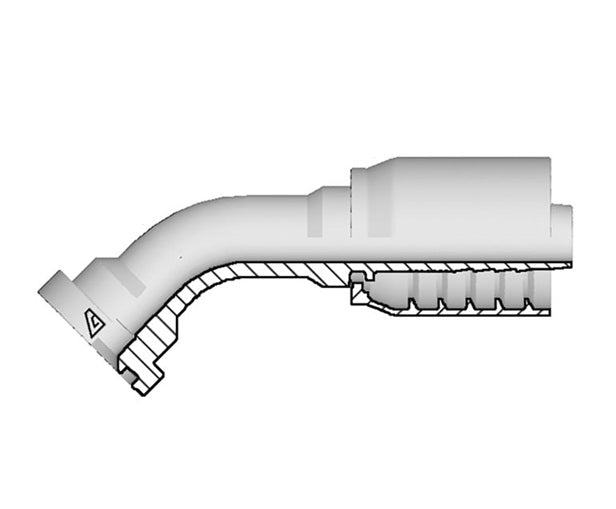

S-1616-C622 Alfagomma by Kuriyama | S Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | SAE J518 | 22.5° Elbow | -16 Code 62 Flange x -16 Hose ID | 6000 PSI | Steel

S-1616-C622 Alfagomma by Kuriyama | S Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | SAE J518 | 22.5° Elbow | -16 Code 62 Flange x -16 Hose ID | 6000 PSI | Steel

Save $31.48 Save $31.48
$110.19
$110.19 - $110.19
$110.19
$78.71
$78.71 - $78.71
$78.71

Kuriyama of America Inc.
Alfagomma | S Series | One-Piece AlfaCrimp Fitting | 22.5° Elbow | Code 62 Flange x Hose Barb

- SAE J518

- 6000 PSI
Specifications for Variant SKU: S-1616-C622 Kuriyama
Brand: Alfabiotech Evolution
Series: S Series
Shape (Orientation): 22.5 Degree
Ends Configuration: 1in Code 62 Flange, 1in Hose Barb
Material(s): Steel
Applicable Specs & Approvals: SAE J518
Compatible with the following Series: E3K Series  |   E4K Series  |   E5K Series  |   E5.5K Series  |   E6K Series  |   E5KST Series  |   E6KST Series
Part Number Hose ID Size Q Flange C Cut-Off
Factor		 Flange Dash
Size		 Weight
Dash
Size		 in mm in mm mm lbs/each
S-1616-C622 -16 1" 25.4mm 1.88" 47.6mm - -16 1.52 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
